B82804A0304A225

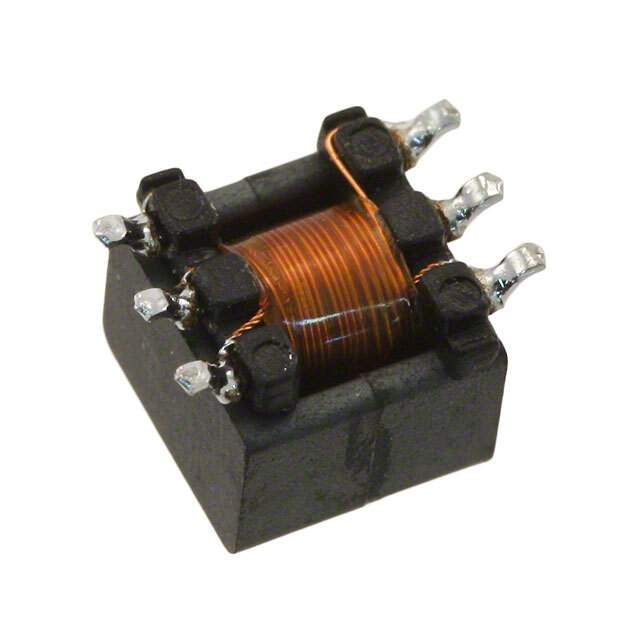

Part No B82804A0304A225
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description PULSE XFMR 2.5:1:1 300UH / 300µH Gate Drive Pulse Transformer 2.5:1:1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Transformer Type Gate Drive
Inductance 300µH
ET (Volt-Time) 23.8VµS
Mounting Surface Mount
Size / Dimension 0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max) 0.213" (5.40mm)
Temperature Range - Operating -40°C ~ 125°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number B82804A 304A225,B82804A304A225,495-4452-6,495-4452-1,495-4452-2
Standard Package 850
Win Source Part Number 1330400-B82804A0304A225
Ultra Librarian 3D Model Ultra Librarian B82804A0304A225 CAD Model

Description

This electronic component is a pulse transformer manufactured by EPCOS - TDK Electronics.

  • Win Source Part Number: 1330400-B82804A0304A225
  • Packaging: Reel - TR
  • Mounting Type: Surface Mount
  • Inductance: 300μH
  • Application: Gate Drive
  • Operating Temperature: -40°C to 125°C
  • ET (Volt-Time): 23.8VμS
