Same model may have multiple batches, images only for reference.

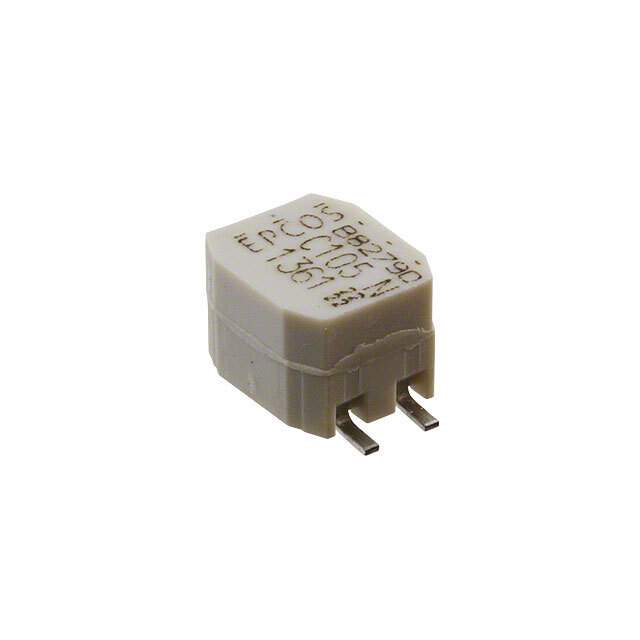

B82790C0474N215 Real Image
Same model may have multiple batches, images only for reference.

B82790C0474N215

Part No B82790C0474N215
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 470UH 500MA 2LN SMD AEC-Q200
Datasheet
B82790C0474N215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 470μH @ 100kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 170 mOhm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.205" (5.20mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 1021782-B82790C0474N215
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82790C0474N215 CAD Model

Description

The B82790C0474N215 is a signal line filter produced by EPCOS (TDK).

  • Application: Various electronic devices
  • Status: Balanced supply and demand
  • Voltage Rating (AC): 42V AC
  • Voltage Rating (DC): 80V DC
  • Current Rating: 500mA
  • AEC-Q200: Yes
  • Temperature Range: -40°C to 125°C
  • Inductance: 470μH @ 100kHz
  • DC Resistance (typ): 170 mOhm
