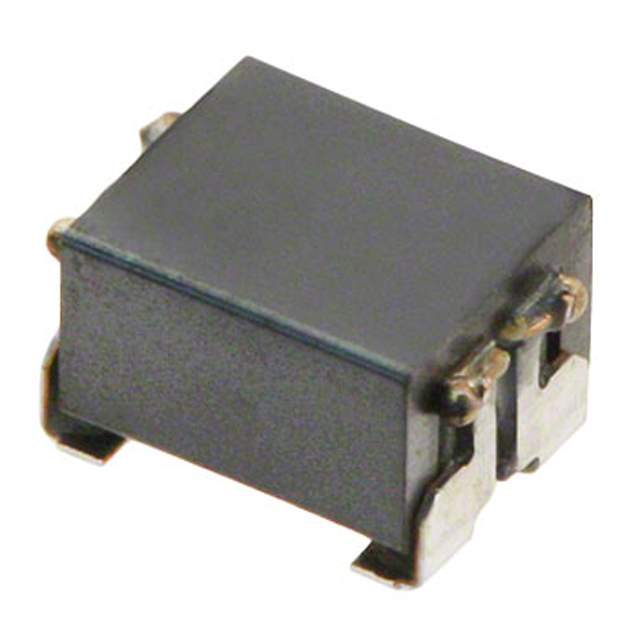

B82789C513H2 Real Image
Same model may have multiple batches, images only for reference.

B82789C513H2

Part No B82789C513H2
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description Common Mode Choke Surface Mount Signal Line 250mA 2 Lines 550 mOhm -55°C ~ 150°C
Datasheet
B82789C513H2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters
Family Common Mode Chokes
Manufacturer EPCOS (TDK)
Series B82789
Packaging Reel(TR)
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 51μH @ 100kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 550 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature Range -55°C ~ 150°C
Ratings AEC-Q200
Mounting Style SMD/SMT
Size / Dimension 0.205" L x 0.126" W (5.20mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Package Horizontal, 4 L-Lead
Win Source Part Number 116715-B82789C513H2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82789C513H2 CAD Model

Description

Product Description

The B82789C513H2 is designed to provide optimal performance in reducing electromagnetic interference in various electronic settings. It offers a balance of size and efficiency, making it adaptable for numerous applications.

Applications

  • Renewable Energy Systems
  • Automotive Electronics
  • LED Lighting Solutions
  • Computing Systems

Features and Benefits

  • Wide Suppression Range: Minimizes noise over a broad spectrum.
  • Space-Efficient Design: Ideal for compact electronic architectures.
  • Reliable Operation: Consistent performance in temperatures from -40°C to +125°C.

This product is a solid choice for projects demanding efficient interference mitigation without compromising space.
