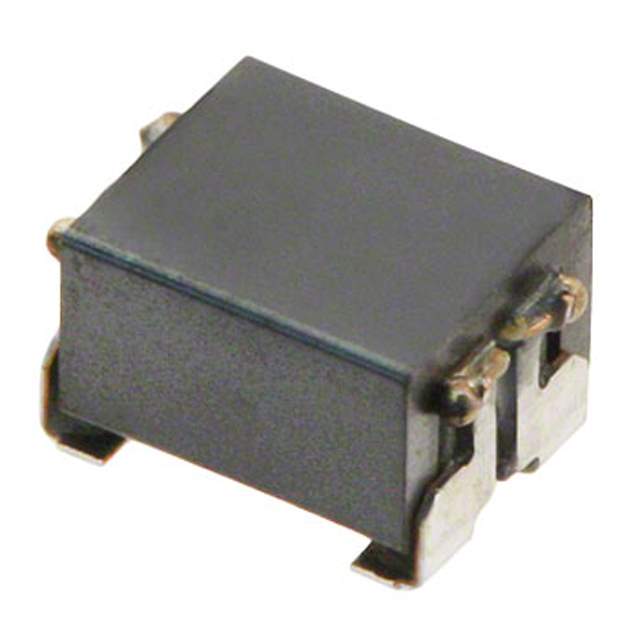

B82789C223N2 Real Image
Same model may have multiple batches, images only for reference.

B82789C223N2

Part No B82789C223N2
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description Common Mode Choke Surface Mount Signal Line 250mA 2 Lines 580 mOhm -55°C ~ 125°C
Datasheet
B82789C223N2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters
Family Common Mode Chokes
Manufacturer EPCOS (TDK)
Series B82789
Packaging Reel(TR)
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 22μH @ 100kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 580 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Mounting Style SMD/SMT
Size / Dimension 0.205" L x 0.126" W (5.20mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Package Horizontal, 4 L-Lead
Win Source Part Number 010696-B82789C223N2
Family Name B82789C0
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China, Germany, Hungary
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82789C223N2 CAD Model

Description

Product Description

The B82789C223N2 is a high-performance common mode choke, perfect for applications involving significant electromagnetic interference. It combines compactness with high inductance for superior performance.

Applications

  • Audio/Video Equipment
  • Data Communication Devices
  • Electric Vehicles
  • Power Line Filters

Features and Benefits

  • Superior Attenuation: Addresses noise across extensive frequency ranges.
  • Lightweight Construction: Facilitates ease of handling and installation.
  • Extended Temperature Support: Functional from -40°C to +125°C.

Adopt the B82789C223N2 for projects necessitating high interference suppression while ensuring seamless integration into existing systems.
