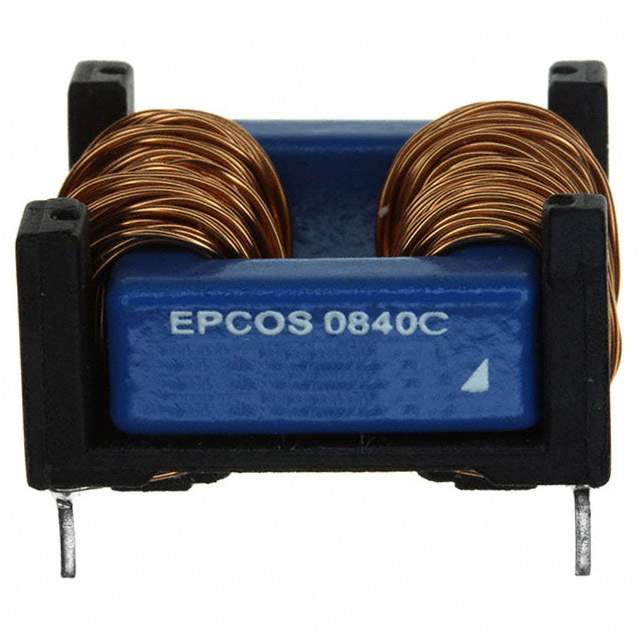

B82732F2451B001 Real Image
Same model may have multiple batches, images only for reference.

B82732F2451B001

Part No B82732F2451B001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 100MH 450MA 2LN TH / 100 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 450mA DCR 2.93Ohm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82732
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 100 mH @ 10 kHz
Current Rating (Max) 450mA
DC Resistance (DCR) (Max) 2.93Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) 0.531" (13.50mm)
Package / Case Horizontal, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names -495-2771-ND,-495-2771,B82732F2451B1,-B82732F2451B1,B82732F2451B 1,B82732F2451B 1,495-2771
Standard Package 770
Win Source Part Number 1178882-B82732F2451B001
Ultra Librarian 3D Model Ultra Librarian B82732F2451B001 CAD Model

Description

The EPCOS B82732F2451B001 is a power line common mode choke with a maximum DC resistance of 2.93Ohm.

  • Inductance: 100 mH @ 10 kHz frequency
  • Current Rating (Max): 450mA
  • Mounting Type: Through-Hole
  • Package/Case: Horizontal, 4 PC Pin
  • Temperature Range: -40°C to 125°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8548.00.0000
