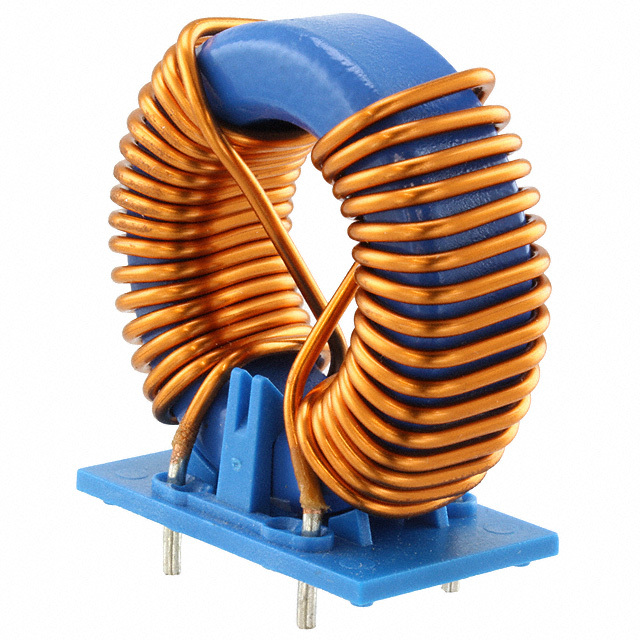

Same model may have multiple batches, images only for reference.
B82726S6243A040 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82726S6243A040

Part No B82726S6243A040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 440 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 29A DCR 1.5mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82726
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 440 µH @ 100 kHz
Current Rating (Max) 29A
DC Resistance (DCR) (Max) 1.5mOhm (Typ)
Voltage Rating - DC 1000V (1kV)
Voltage Rating - AC 600V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max) 1.772" (45.00mm)
Package / Case Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482267-B82726S6243A040
Ultra Librarian 3D Model Ultra Librarian B82726S6243A040 CAD Model
