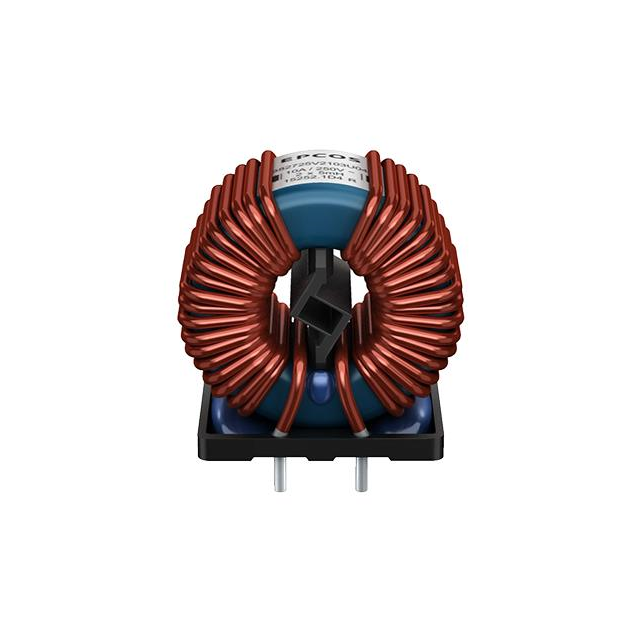

B82725V2163U040 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82725V2163U040

Part No B82725V2163U040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 16A DCR 4.2mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82725V2163
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 10 kHz
Current Rating (Max) 16A
DC Resistance (DCR) (Max) 4.2mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.535" L x 0.984" W (39.00mm x 25.00mm)
Height (Max) 1.457" (37.00mm)
Package / Case Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482250-B82725V2163U040
Ultra Librarian 3D Model Ultra Librarian B82725V2163U040 CAD Model
