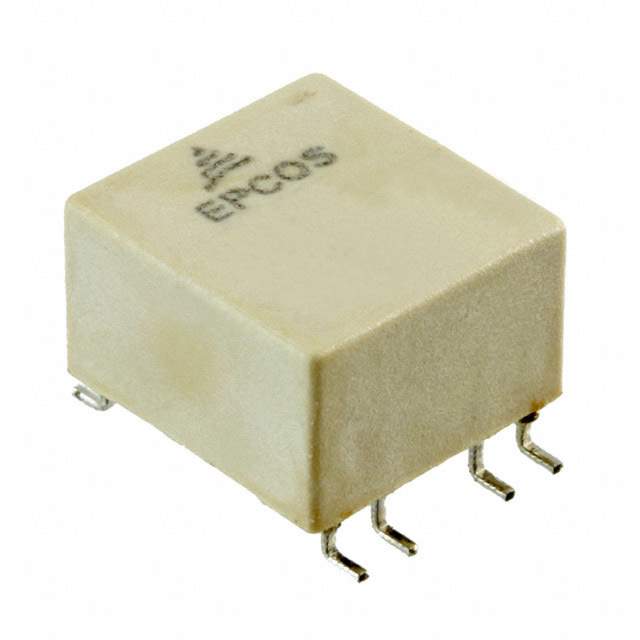

The B82720S2301N40 is a common mode choke manufactured by EPCOS (TDK). Common mode chokes are designed to suppress common mode noise in electronic circuits. They are widely used to reduce electromagnetic interference (EMI) and improve the overall performance and reliability of electronic devices.

Applications

• Switch-mode power supplies
• Inverters
• Motor drives
• Audio and video equipment
• Data communication lines
• Industrial control systems

Features

• High common mode impedance
• Low differential mode impedance
• Compact size
• High current capability
• RoHS compliant
• Excellent EMI suppression
• UL recognized

Benefits

• Reduced electromagnetic interference
• Improved signal integrity
• Increased system reliability
• Compliance with EMC standards
• Compact design for space-constrained applications
• Efficient noise suppression
• Easy integration into existing systems

Additional Details

The B82720S2301N40 common mode choke consists of two or more windings on a single core. The windings are configured such that the magnetic fields generated by differential mode currents cancel each other out, while the magnetic fields generated by common mode currents add up. This results in high impedance for common mode currents and low impedance for differential mode currents. This allows the choke to effectively suppress common mode noise without affecting the desired signals. The choke is typically constructed using ferrite core material and is designed to meet industry standards for safety and performance.

Common mode chokes are essential components in many electronic systems to ensure compliance with electromagnetic compatibility (EMC) standards. They are particularly important in applications where electronic devices are exposed to noisy environments or where they generate significant amounts of EMI. The B82720S2301N40 provides an effective and reliable solution for suppressing common mode noise in a wide range of applications.
