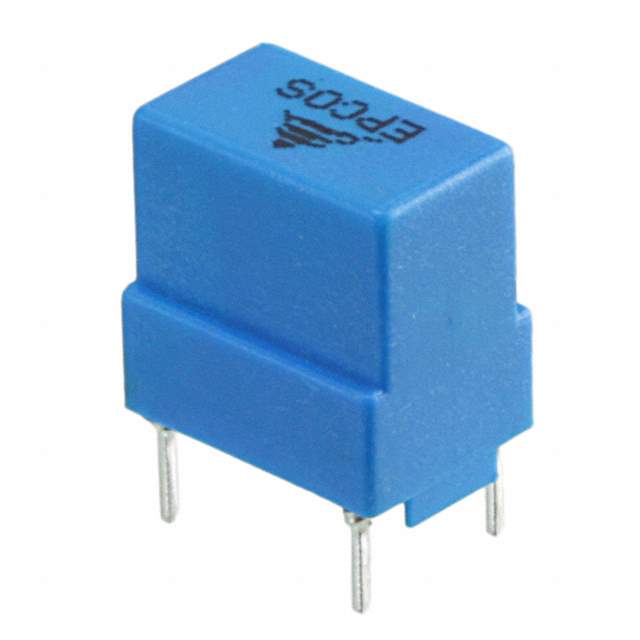

B82720K2102N040 Real Image
Same model may have multiple batches, images only for reference.

B82720K2102N040

Part No B82720K2102N040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 3MH 1A 2LN TH / 3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 220mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer EPCOS - TDK Electronics
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 220mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Through Hole
Size / Dimension 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) 0.551" (14.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 495-5718,B82720K2102N40,B82720K2102N40-ND,B82720K2102N 40
Standard Package 150
Win Source Part Number 1328230-B82720K2102N040
Ultra Librarian 3D Model Ultra Librarian B82720K2102N040 CAD Model

Description

The EPCOS-TDK Electronics B82720K2102N040 is a common mode choke filter designed for power line applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1A
  • Mounting Style: Through-hole
  • Packaging: Tray
  • Length: 0.512 inches
  • Width: 0.374 inches
  • Height: 0.551 inches
  • Lines: Two
  • Inductance @ frequency: 3 mH @ 10 kHz
  • DC Resistance (DCR): 220mOhm (Typ)
  • Temperature Range: -40°C to 125°C
  • Compliance: ROHS3
  • Approvals: ENEC, UR, and VDE
