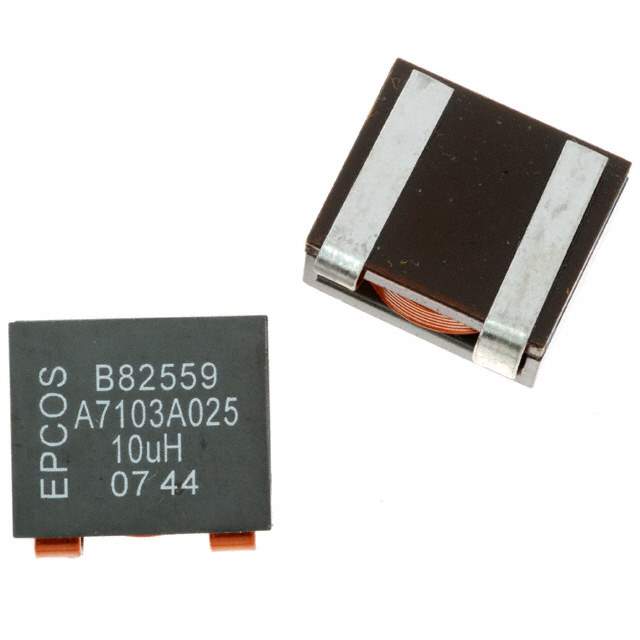

B82559A7103A025 Real Image
Same model may have multiple batches, images only for reference.

B82559A7103A025

Part No B82559A7103A025
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 10UH 24A 2.2 MOHM SMD / SMT power inductors ERU 25, helically wound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS (TDK)
Packaging Bulk
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±7%
Current - Saturation 24A
Shielding Shielded
DC Resistance (DCR) 2.2mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.996" L x 0.925" W (25.30mm x 23.50mm)
Height - Seated (Maximum) 0.506" (12.85mm)
Manufacturer Pack Quantity 240
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812885-B82559A7103A025
Ultra Librarian 3D Model Ultra Librarian B82559A7103A025 CAD Model

Description

The EPCOS (TDK) B82559A7103A025 is a wirewound type electronic component with a shielding feature.

  • Inductance: 10μH
  • Tolerance: ±7%
  • Core Material: Ferrite
  • Current Saturation: 24A
  • DC Resistance (DCR): 2.2mOhm
  • Temperature Range: -40°C to 130°C
  • Dimension: 0.996" L x 0.925" W (25.30mm x 23.50mm)
  • Height - Seated (Maximum): 0.506" (12.85mm)
  • Packaging: Bulk
  • Manufacturer Package: Nonstandard
  • Manufacturer Pack Quantity: 240
  • MSL Level: 1 (Unlimited)
  • Inductance Frequency - Test: 10kHz
