Same model may have multiple batches, images only for reference.

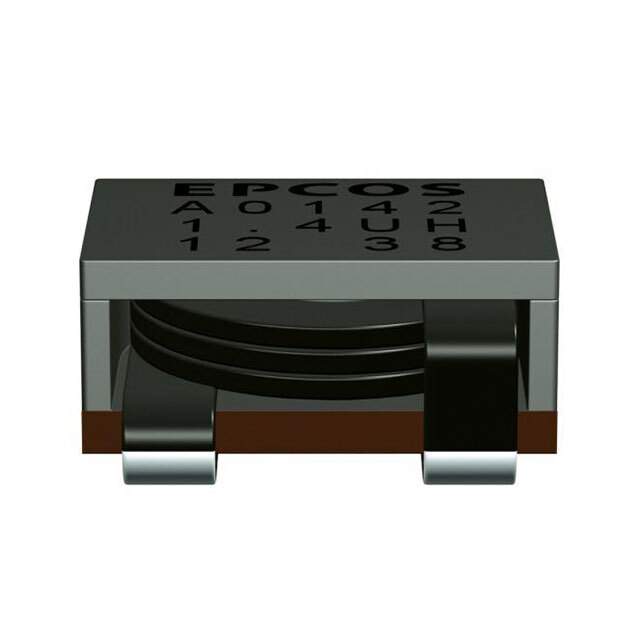

B82559A0112A013 Real Image
Same model may have multiple batches, images only for reference.

B82559A0112A013

Part No B82559A0112A013
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1.1UH 20A 1.72MOHM SMD / 1.1 µH Shielded Drum Core, Wirewound Inductor 20 A 1.72mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series ERU13 - Flat Wire Inductor
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.1 µH
Tolerance ±10%
Current Rating (Amps) 20 A
Current - Saturation (Isat) 20A
Shielding Shielded
DC Resistance (DCR) 1.72mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.421" W (13.00mm x 10.70mm)
Height - Seated (Max) 0.195" (4.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -495-1860-1,-B82559A112A13,B82559A112A13,495-1860-1,495-1860-2,-495-1860-1-ND,B82559A 112A 13,495-1860-6
Standard Package 750
Win Source Part Number 1174639-B82559A0112A013
Ultra Librarian 3D Model Ultra Librarian B82559A0112A013 CAD Model

Description

The EPCOS - TDK Electronics ERU13 - Flat Wire Inductor is a shielded drum core, wirewound type of inductor. It has a nonstandard package/case, with dimensions of 0.512" L x 0.421" W (13.00mm x 10.70mm).

  • Inductance: 1.1 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 1.72mOhm
  • Current Rating: 20A
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
