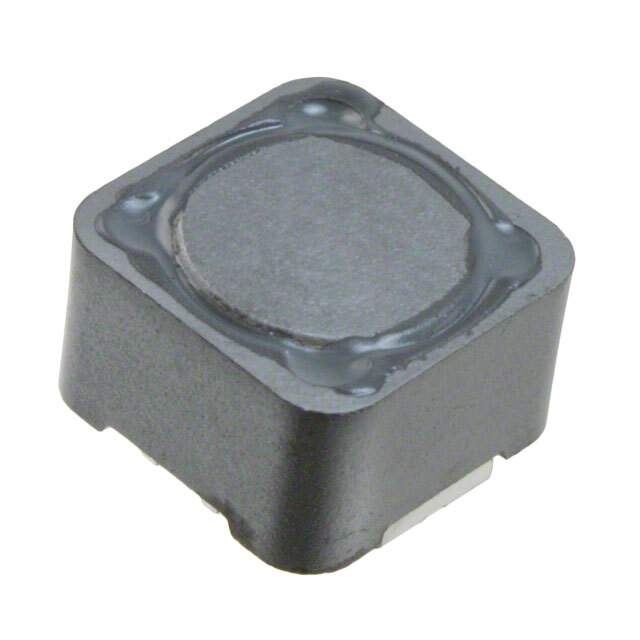

B82477G4102M000 Real Image1 B82477G4102M000 Real Image2
Same model may have multiple batches, images only for reference.
B82477G4102M000 Real Image1 B82477G4102M000 Real Image2
B82477G4102M000 Real Image1 B82477G4102M000 Real Image2
Same model may have multiple batches, images only for reference.

B82477G4102M000

Part No B82477G4102M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1UH 9.8A 7 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 9.8 A 7mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS (TDK)
Series B82477G4
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 9.8 A
Current - Saturation (Isat) 15A
Shielding Shielded
DC Resistance (DCR) 7mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max) 0.315" (8.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 400 pcs
Win Source Part Number 1381542-B82477G4102M000
Ultra Librarian 3D Model Ultra Librarian B82477G4102M000 CAD Model

Description

The B82477G4 is a drum core, wirewound inductor from EPCOS (TDK).

  • Series: B82477G4
  • Mounting Type: Surface Mount
  • Size: 0.504" L x 0.504" W (12.80mm x 12.80mm)
  • Height: 0.315" (8.00mm)
  • Inductance: 1 µH
  • Maximum DC Resistance: 7mOhm
  • Shielding: Shielded
  • Tolerance: ±20%
  • Current Rating: 9.8Amps
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape & reel
  • Standard Package: 400 pcs
  • Core Material: Ferrite
