Same model may have multiple batches, images only for reference.

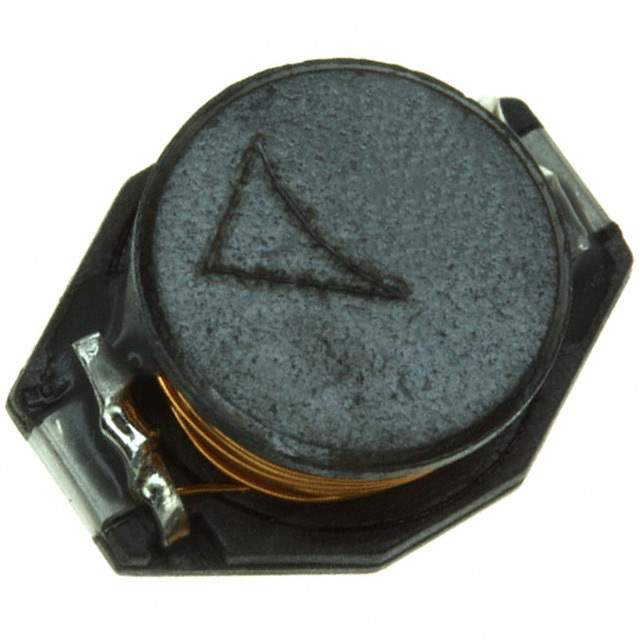

B82476A1153M000 Real Image
Same model may have multiple batches, images only for reference.

B82476A1153M000

Part No B82476A1153M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 15UH 3.1A 40 MOHM SMD / 15 µH Unshielded Drum Core, Wirewound Inductor 3.1 A 40mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series B82476A1
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 3A
Shielding Unshielded
DC Resistance (DCR) 40mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Max) 0.200" (5.08mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 495-76644-1,495-76644-2,B82476A1153M,B82476A1153M-ND,B82476A1153M000-ND,495-76644-6
Standard Package 750
Win Source Part Number 1122779-B82476A1153M000
Ultra Librarian 3D Model Ultra Librarian B82476A1153M000 CAD Model

Description

The B82476A1153M000 is a surface mount fixed inductor manufactured by EPCOS - TDK Electronics.

  • Inductance: 15 μH
  • Tolerance: ±20%
  • Current Rating: 3.1 A
  • DC Resistance (DCR): 40mOhm Max
  • Diameter: 0.510" L x 0.370" W (12.95mm x 9.40mm)
  • Height: 0.200" (5.08mm)
  • Series: B82476A1
  • Package/Case: Nonstandard
  • Core Material: Ferrite
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Other Names: 495-76644-1, 495-76644-2, B82476A1153M, B82476A1153M-ND, B82476A1153M000-ND, and 495-76644-6
