Same model may have multiple batches, images only for reference.

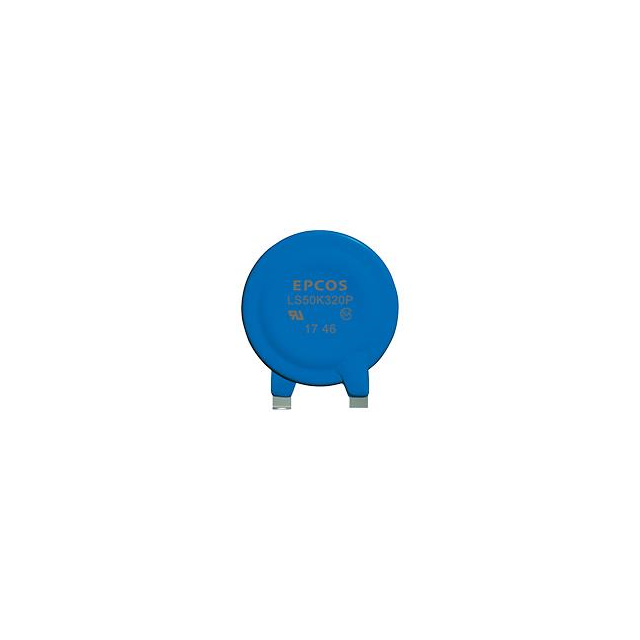

B72250L0381K100 Real Image
Same model may have multiple batches, images only for reference.

B72250L0381K100

Part No B72250L0381K100
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series HighE, LS50
Package Bulk
Maximum AC Volts 385 V
Maximum DC Volts 505 V
Varistor Voltage (Min) 558 V
Varistor Voltage (Typ) 620 V
Varistor Voltage (Max) 682 V
Current - Surge 75 kA
Energy 1200J
Number of Circuits 1
Capacitance @ Frequency 3500 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Bolt Mount
Package / Case Disc 57mm
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1315443-B72250L0381K100
Ultra Librarian 3D Model Ultra Librarian B72250L0381K100 CAD Model

Description

The B72250L0381K100 is a TVS varistor that is designed to protect electronic circuits from high voltage surges and spikes.

  • Capacitance: 3500 pF @ 1 kHz
  • Varistor Voltage Range: 558 V to 682 V
  • Surge Current: Up to 75 kA
  • Energy Rating: 1200J
  • Mounting Type: Bolt Mount
  • Package Size: Disc 57mm
  • Manufacturer: EPCOS - TDK Electronics
  • Operating Temperature: -40°C to 85°C
