B65686A0630A027 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

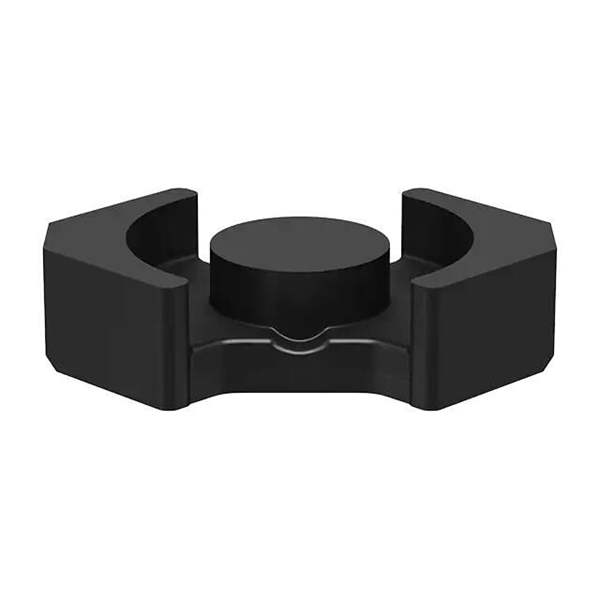

B65686A0630A027

Part No B65686A0630A027
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N27 Ferrite Core PM Type Length Width 2.913" (74.00mm) Diameter 1.161" (29.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series PM74/59
Packaging Box
Core Type PM
Supplier Device Package PM 74 x 59
Material N27
Diameter 2.913" (74.00mm)
Inductance Factor (Al) 630 nH
Tolerance ±3%
Gap Gapped
Effective Permeability (µe) 81.0
Initial Permeability (µi) 2000
Core Factor (ΣI/A) mm⁻¹ 0.162
Effective Length (le) mm 128.0
Effective Area (Ae) mm2 790.0
Minimum Core Cross Section (Amin) mm2 630.0
Effective Magnetic Volume (Ve) mm3 101000.0
Finish Uncoated
Height 1.161" (29.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489776-B65686A0630A027
Ultra Librarian 3D Model Ultra Librarian B65686A0630A027 CAD Model
