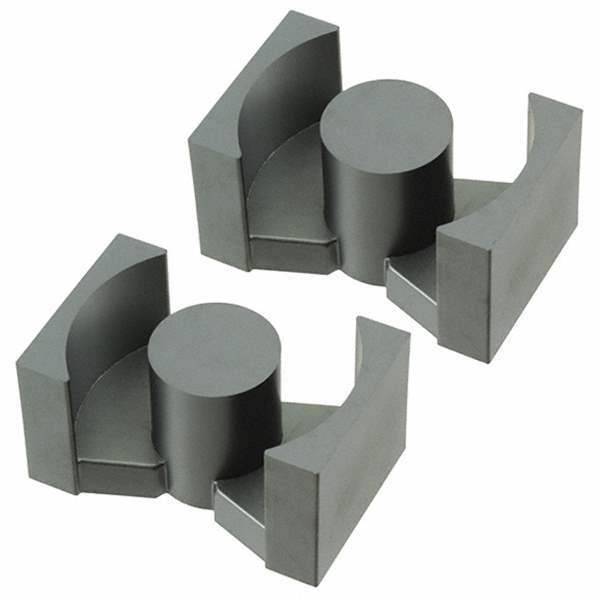

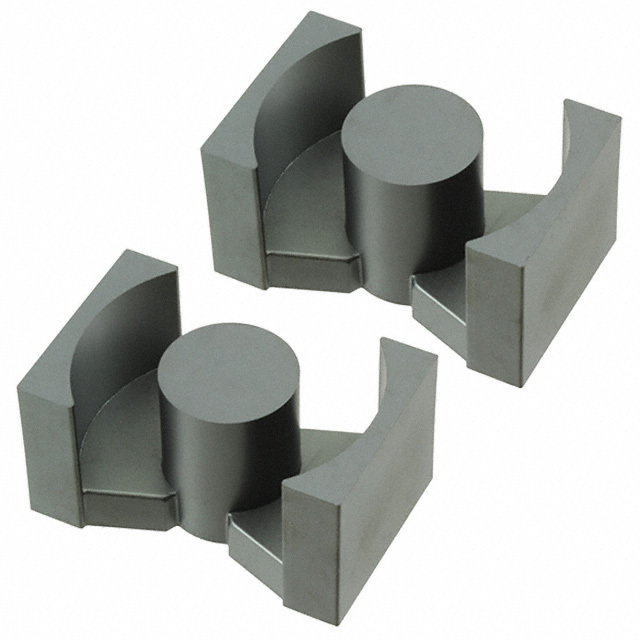

B65531D0040A001 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65531D0040A001

Part No B65531D0040A001
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE P 40NH K1 2PCS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type P (Pot Core)
Supplier Device Package P 11 x 7
Material K1
Diameter 0.445" (11.30mm)
Inductance Factor (Al) 40 nH
Tolerance ±3%
Gap Gapped
Effective Permeability (µe) 32.0
Initial Permeability (µi) 80
Core Factor (ΣI/A) mm⁻¹ 1.0
Effective Length (le) mm 15.9
Effective Area (Ae) mm2 15.9
Effective Magnetic Volume (Ve) mm3 253.0
Finish Uncoated
Height 0.130" (3.30mm)
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1528194-B65531D0040A001
Ultra Librarian 3D Model Ultra Librarian B65531D0040A001 CAD Model
