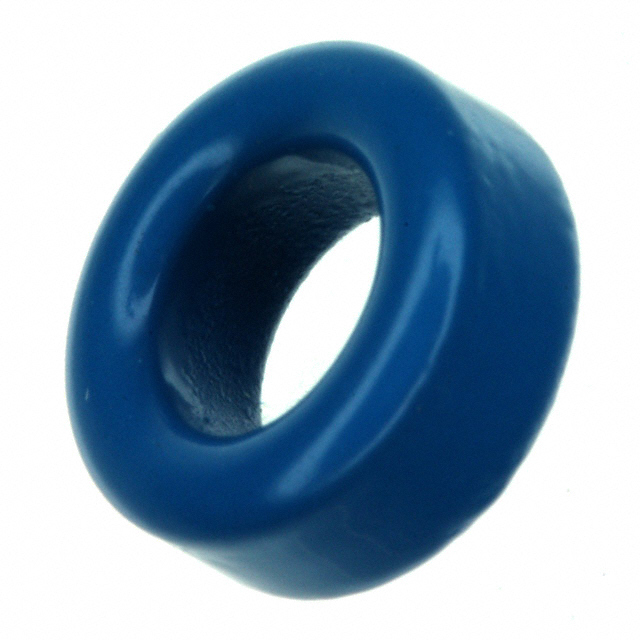

B64290L0038X049 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290L0038X049

Part No B64290L0038X049
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Epoxy N49 Ferrite Core Toroid Type Length Width 0.425" (10.80mm) Diameter 0.187" (4.75mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TX10/6/4
Packaging Box
Core Type Toroid
Material N49
Diameter 0.425" (10.80mm)
Inductance Factor (Al) 610 nH
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 1500
Core Factor (ΣI/A) mm⁻¹ 3.07
Effective Length (le) mm 24.07
Effective Area (Ae) mm2 7.83
Effective Magnetic Volume (Ve) mm3 188.0
Finish Epoxy
Height 0.187" (4.75mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489344-B64290L0038X049
Ultra Librarian 3D Model Ultra Librarian B64290L0038X049 CAD Model
