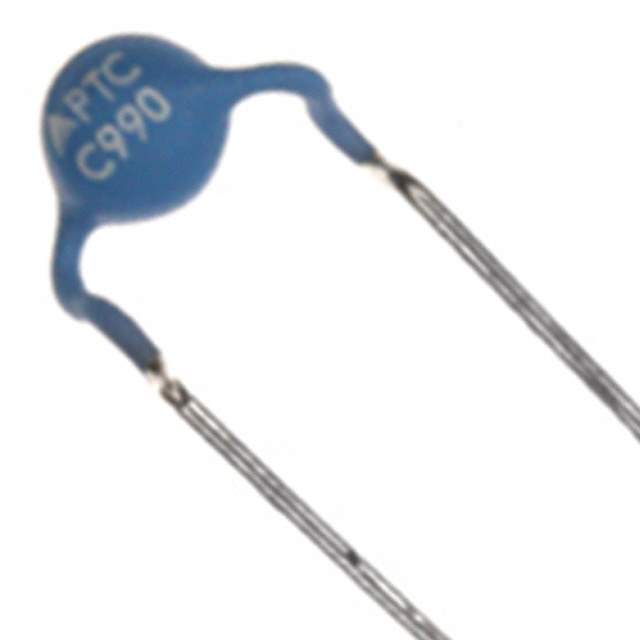

B59990C0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59990C0120A070

Part No B59990C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 80V 50MA RADIAL / Ceramic PTC Resettable Fuse 80V 50 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Series Automotive, AEC-Q200
Package Bulk
Type Ceramic
Voltage - Max 80V
Current - Max 700 mA
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 100 mA
Resistance - 25°C (Typ) 55 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.157" Dia x 0.138" T (4.00mm x 3.50mm)
Height - Seated (Max) 0.295" (7.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1337419-B59990C0120A070
Ultra Librarian 3D Model Ultra Librarian B59990C0120A070 CAD Model

Description

The B59990C0120A070 is a PTC resettable fuse that is rated AEC-Q200 manufactured by EPCOS - TDK Electronics.

  • Mounting Type: Through-Hole
  • Voltage Rating: 80V
  • Current Rating: 700 mA
  • Current - Trip (It): 100 mA
  • Package Type: Radial, Disc
  • Operating Temperature: -40°C ~ 125°C
  • Resistance - 25°C (Typ): 55 Ohms
  • REACH: Unaffected
  • RoHS3 Compliant: Yes
