Same model may have multiple batches, images only for reference.

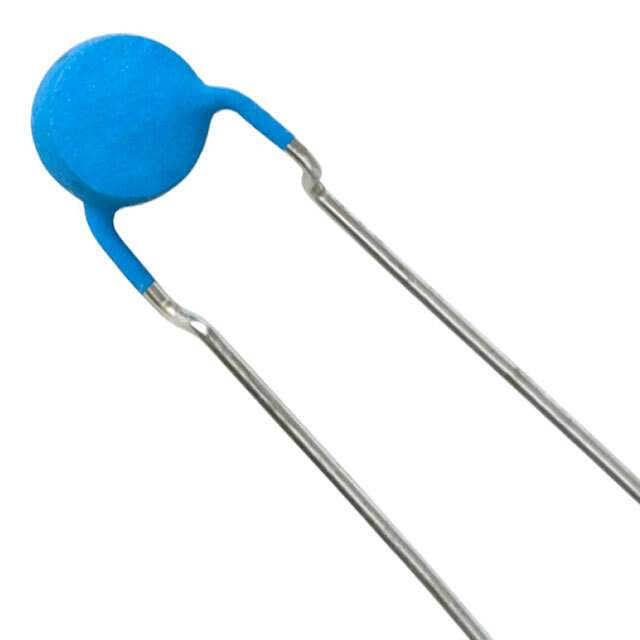

B59886C0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59886C0120A070

Part No B59886C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 550V 12MA RADIAL / Ceramic PTC Resettable Fuse 550V 12 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Package Bulk
Type Ceramic
Voltage - Max 550V
Current - Max 100 mA
Current - Hold (Ih) (Max) 12 mA
Current - Trip (It) 24 mA
Resistance - 25°C (Typ) 1.5 kOhms
Temperature Range - Operating 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.256" Dia x 0.197" T (6.50mm x 5.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1340187-B59886C0120A070
Ultra Librarian 3D Model Ultra Librarian B59886C0120A070 CAD Model

Description

The B59886C0120A070 is a ceramic PTC resettable fuse from EPCOS - TDK Electronics.

  • Voltage - Max: 550V
  • Current - Max: 100 mA
  • Current - Trip (It): 24 mA
  • Resistance @ 25°C: 1.5 kOhms
  • Package: Radial, Disc
  • Size / Dimension: 0.256" Dia x 0.197" T (6.50mm x 5.00mm)
  • Operating Temperature: 0°C to 60°C
  • Approval Agency: UR
