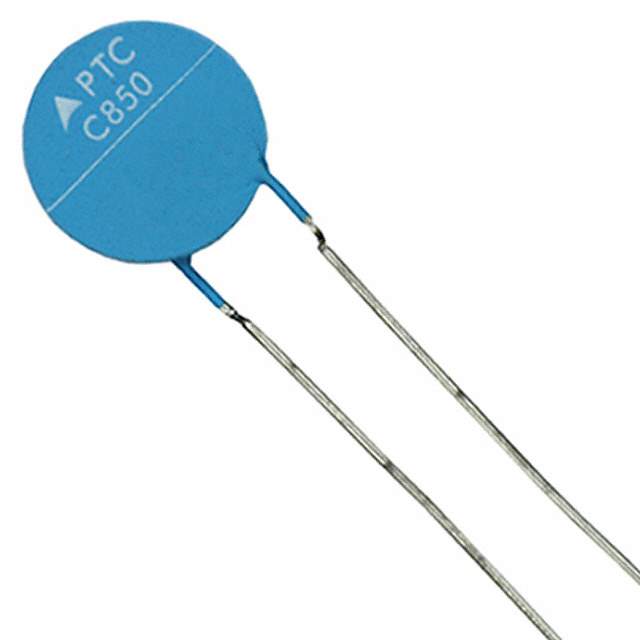

B59850C0130A070 Real Image1 B59850C0130A070 Real Image2
Same model may have multiple batches, images only for reference.
B59850C0130A070 Real Image1 B59850C0130A070 Real Image2
B59850C0130A070 Real Image1 B59850C0130A070 Real Image2
Same model may have multiple batches, images only for reference.

B59850C0130A070

Part No B59850C0130A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 265V 200MA RADIAL / Ceramic PTC Resettable Fuse 265V 200 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr EPCOS (TDK)
Series -
Package Bulk
Type Ceramic
Voltage - Max 265V
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 320 mA
Current - Max 1.5 A
Resistance - 25°C (Typ) 13 Ohms
Temperature Range - Operating 0°C ~ 60°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.433" Dia x 0.197" T (11.00mm x 5.00mm)
Height - Seated (Max) 0.571" (14.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Standard Package 1,300 pcs
Win Source Part Number 1381538-B59850C0130A070
Ultra Librarian 3D Model Ultra Librarian B59850C0130A070 CAD Model

Description

The PTC Resettable Fuses are reliable circuit protection components used in various electronic applications from EPCOS (TDK).

  • Category: Circuit Protection>PTC Resettable Fuses
  • Package: Bulk
  • Size: 0.433" Dia x 0.197" T (11.00mm x 5.00mm)
  • Height: 0.571" (14.50mm)
  • Voltage Rating: 265V
  • Current Rating: 1.5 A
  • Resistance: 13 Ohms @ 25°C
  • Temperature Range: 0°C to 60°C
