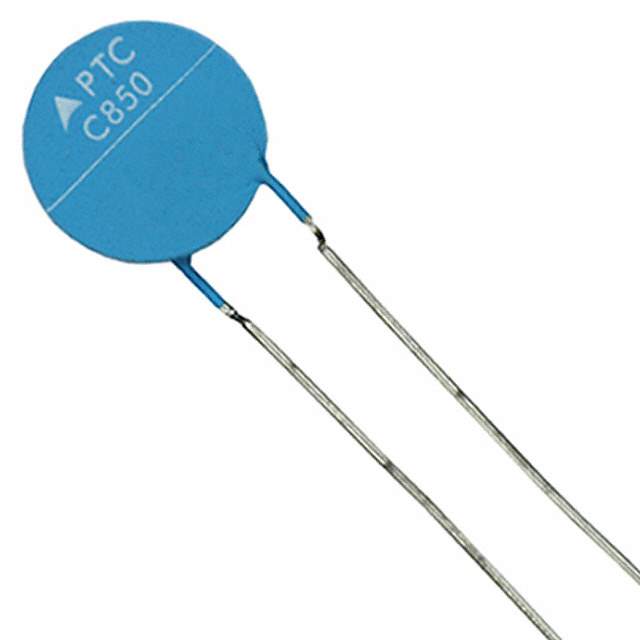

B59850C0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59850C0120A070

Part No B59850C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 200MA 230V RAD
Datasheet
B59850C0120A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 265V
Current - Max 2.2A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Resistance - 25°C (Typ) 10 Ohm
Temperature Range - Operating 0°C to 60°C
Mounting Through Hole
Dimension 0.532" Dia x 0.197" W (13.50mm x 5.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199973-B59850C0120A070
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B59850C0120A070 CAD Model

Description

Product Features and Benefits

  • Low dissipation factor ensures minimal energy loss.
  • Compact design suitable for modern electronic devices.
  • Robust under high-temperature conditions.

Applications

  • Automotive electronics
  • Temperature detection circuits
  • Industrial control systems

Additional Details

The B59850C0120A070 provides superior heat management with its low dissipation factor, making it ideal for automotive and industrial applications where efficiency and reliability are crucial.
