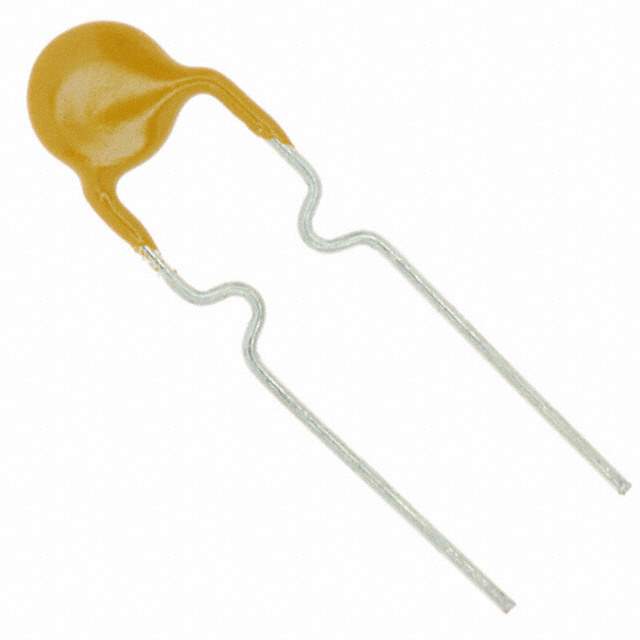

MF-R010-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-R010-2-99

Part No MF-R010-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 100MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Maximum) 100mA
Current - Trip (It) 200mA
Time to Trip 4s
Resistance - Initial (Ri) (Min) 2.5 Ohms
Resistance - Post Trip (R1) (Maximum) 7.5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Part Number Series MF-R010
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801335-MF-R010-2-99
Ultra Librarian 3D Model Ultra Librarian MF-R010-2-99 CAD Model

Description

The MF-R010-2-99 is a polymeric fuse.

  • Applications: Power supplies, lighting, and motor control
  • Voltage Rating: 60 V
  • Current Rating: 40 A
  • Current Trip: 200 mA
  • Compliance: RoHS
  • Package: Lead-free
