Same model may have multiple batches, images only for reference.

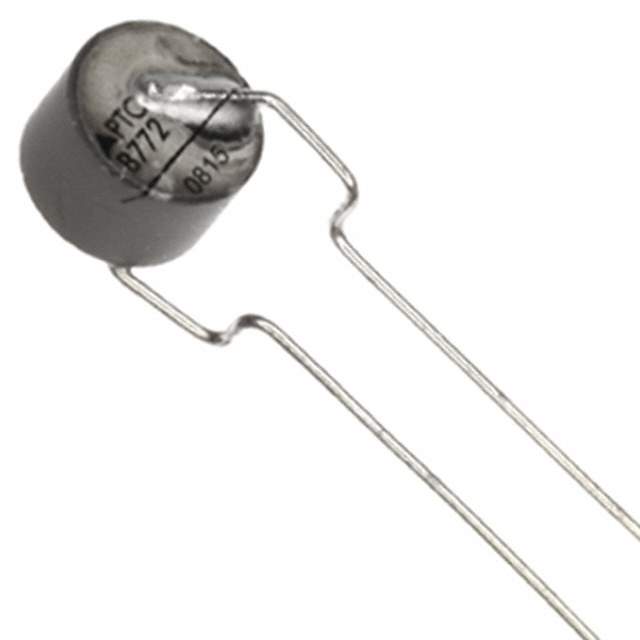

B59772B120A70 Real Image
Same model may have multiple batches, images only for reference.

B59772B120A70

Part No B59772B120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description Thermistor PTC 150 Ohm 25% 2-Pin Radial Cardboard Strip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Radial
Current Rating 43 mA
Diameter 8.5 mm
Hold Current 43 mA
Max Current Rating 1.4 A
Max Operating Temperature 60 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Pins 2
Radiation Hardening No
Resistance 150 Ω
RoHS Compliant
Schedule B 8533400080
Time to Trip 3 s
Tolerance 25 %
Trip Current 86 mA
Voltage 440 V
Win Source Part Number 1192352-B59772B120A70
Categories PTC Resettable Fuses
Manufacturer EPCOS (TDK)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B59772B120A70 CAD Model

Description

This electronic component is manufactured by EPCOS (TDK) and has a Win Source Part Number of 1192352-B59772B120A70. EPCOS (TDK)

  • Win Source Part Number: 1192352-B59772B120A70
  • Type: PTC Resettable Fuse
  • Current Rating: 43 mA
  • Voltage: 440 V
  • Tolerance: 25%
  • Time to Trip: 3 s
  • Resistance: 150 Ω
  • Number of Pins: 2
  • Hold Current: 43 mA
  • Diameter: 8.5 mm
  • Supply and Demand Status: Limited
  • Mounting Type: Through Hole
  • RoHS Compliant: Yes
  • Max Current Rating: 1.4 A
  • Max Operating Temperature: 60°C
