Same model may have multiple batches, images only for reference.

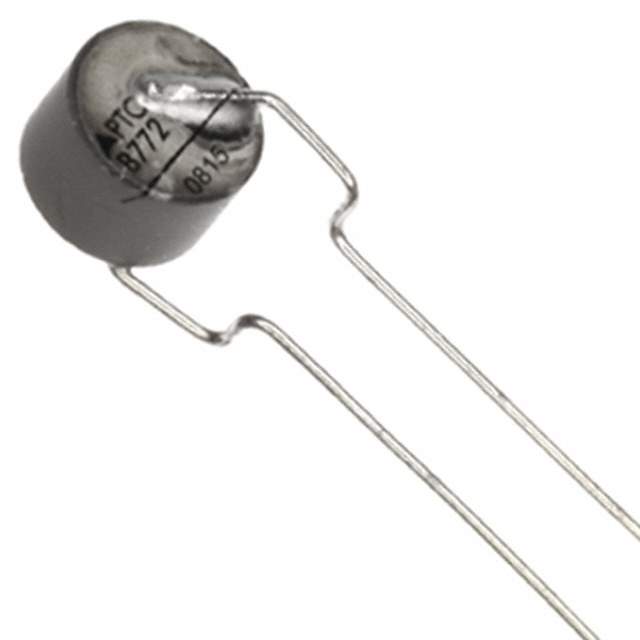

B59772B0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59772B0120A070

Part No B59772B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 420V RADIAL DISC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 25 Weeks
Features Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Manufacturer EPCOS (TDK)
Package Bulk
Operating Temperature Range 0°C ~ 60°C
Mounting Through Hole
Package Radial, Disc
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number B59772B 120A 70, 495-3888, B59772B120A70, B59772B0120A070-ND, B59772B120A70-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912552-B59772B0120A070
Ultra Librarian 3D Model Ultra Librarian B59772B0120A070 CAD Model

Description

The EPCOS (TDK) B59772B0120A070 is a ceramic PTC resettable fuse designed for use in circuit protection. It has a maximum voltage rating of 420V and a through-hole radial, disc package.

  • Manufacturer: EPCOS (TDK)
  • Type: Ceramic PTC Resettable Fuse
  • Application: Circuit Protection
  • Voltage Rating: 420V
  • Package: Through-Hole Radial, Disc
  • Package Type: Bulk
  • Quantity per Package: 1000
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 25 weeks
  • REACH: Unaffected
