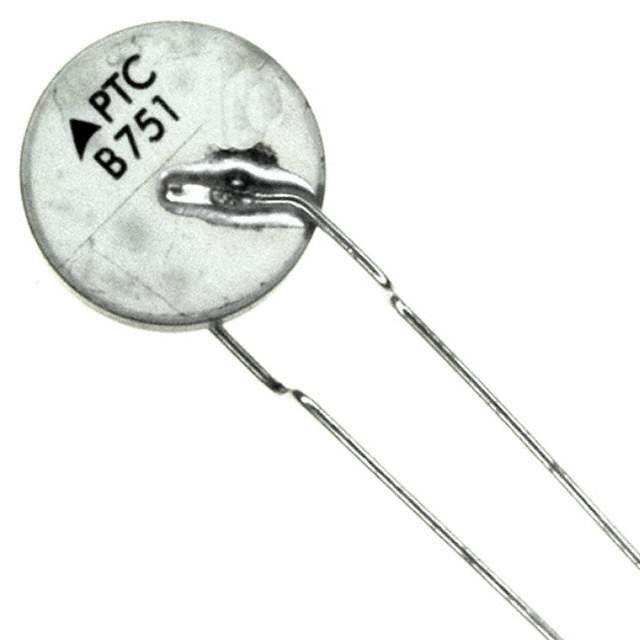

B59751B0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59751B0120A070

Part No B59751B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 420V RADIAL DISC  /  Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Package Bulk
Product Status Obsolete
Type Ceramic
Voltage - Max 420V
Current - Max 2 A
Current - Trip (It) 173 mA
Time to Trip 4 s
Resistance - 25°C (Typ) 50 Ohms
Temperature Range - Operating 0°C ~ 60°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names B59751B0120A070-ND,B59751B120A70,B59751B 120A 70,B59751B120A70-ND,495-3880,Q5763838KA
Standard Package 500
Win Source Part Number 1022012-B59751B0120A070
Ultra Librarian 3D Model Ultra Librarian B59751B0120A070 CAD Model

Description

The PTC resettable fuse is a ceramic component that comes in a radial, disc package. It is manufactured by EPCOS - TDK Electronics.

  • Mounting: through-hole mountable
  • Category: circuit protection
  • MSL Level: 1 (unlimited)
  • REACH Status: unaffected
  • HTSUS: 8533.40.8070
  • Status: obsolete
  • Standard Package: 500 pieces
