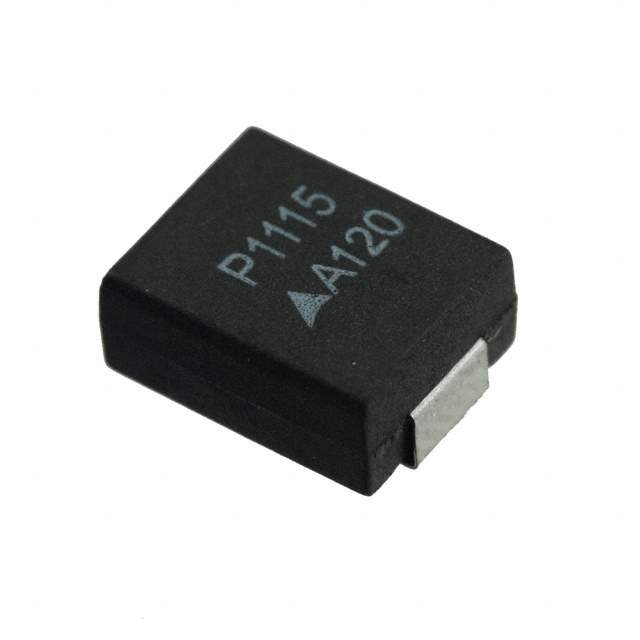

Same model may have multiple batches, images only for reference.

B59115P1120A62

Name: B59115P1120A62
Brand: EPCOS (TDK)
SKU: 1047832
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	B59115P1120A62
Manufacturer	EPCOS (TDK)
Catalog	PTC Resettable Fuses
Description	Thermistor PTC 55 Ohm 25% 2-Pin 3225 Surface Mount Solder Pad Blister T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	3225
Case Code (Imperial)	3225
Case / Package	8063
Current Rating	70 mA
Depth	6.3 mm
Height	3.3 mm
Hold Current	70 mA
Lead Free	Yes
Length	8 mm
Maximum Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Pins	2
Operating Supply Voltage	80 V
Radiation Hardening	No
Resistance	55 Ω
RoHS	Compliant
Schedule B	8533400080
Termination	SMD/SMT
Tolerance	25 %
Trip Current	145 mA
Voltage	63 V
Width	6.3 mm
Win Source Part Number	1047832-B59115P1120A62
Categories	PTC Resettable Fuses
Manufacturer	EPCOS (TDK)
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian B59115P1120A62 CAD Model

Alternative Products

Description

The B59115P1120A62 is a surface mount device with a hold current of 70 mA and a trip current of 145 mA. It is manufactured by EPCOS (TDK).

Resistance: 55 Ω
Power Rating: 3.9 W
Supply Voltage: 80 V
Maximum Operating Temperature: 125 °C
Current Rating: 70 mA
Tolerance: 25%
Height: 3.3 mm
Width: 6.3 mm
Length: 8 mm
Pins: 2
Category: PTC Resettable Fuses
Mount: surface mount mount
RoHS Compliant: Yes
Availability: in the open market.
