Same model may have multiple batches, images only for reference.

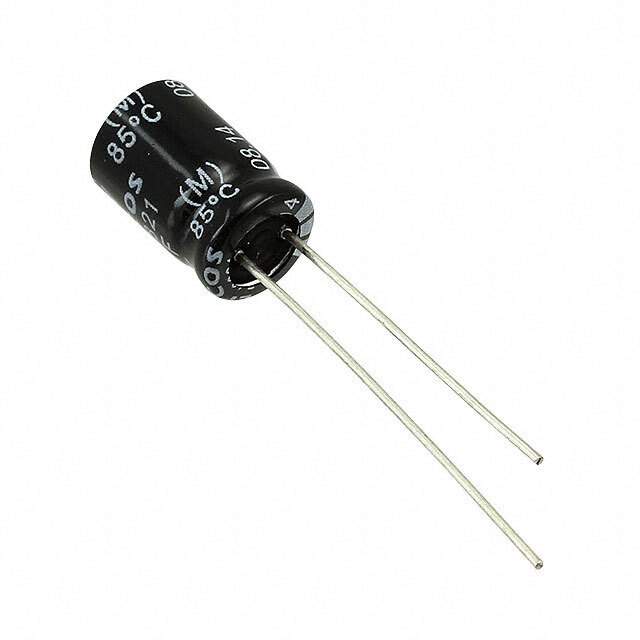

B43821A1684M Real Image
Same model may have multiple batches, images only for reference.

B43821A1684M

Part No B43821A1684M
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 0.68UF 20% 160V RADIAL
Datasheet
B43821A1684M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B43821
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 0.68μF
Tolerance ±20%
Voltage Rating 160V
ESR (Equivalent Series Resistance) 273 Ohm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 18mA @ 120Hz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 766652-B43821A1684M
Popularity Medium
Supply and Demand Status Limited
Family Name B43821
Introduction Date November 05, 2008
Country of Origin Brazil
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian B43821A1684M CAD Model

Description

The EPCOS (TDK) B43821A1684M capacitor is part of the B43821 series.

  • Series: B43821
  • Capacitance: 0.68μF
  • Tolerance: ±20%
  • Voltage Rating: 160V
  • Ripple Current - Low Frequency: 18mA @ 120Hz
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 3000 Hrs @ 85°C
  • Polarization: Polar
  • Status: Obsolete (EOL)
  • Supply and Demand: Limited
  • Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Maximum): 0.472" (12.00mm)
  • Introduction Date: November 05, 2008
  • Country of Origin: Brazil
  • Estimated EOL Date: Obsolete
