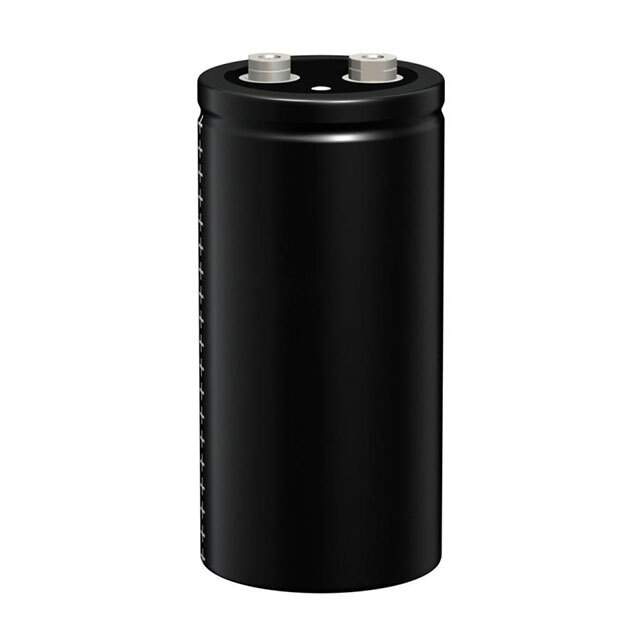

B43703A5109M000 Real Image
Same model may have multiple batches, images only for reference.

B43703A5109M000

Part No B43703A5109M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 20% 450V SCREW
Datasheet
B43703A5109M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B43703
Packaging Bulk
Capacitance 10000μF
Tolerance ±20%
Voltage Rating 450V
ESR (Equivalent Series Resistance) 9.9 mOhm @ 100Hz
Lifetime @ Temp. 12000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 26.4A @ 100Hz
Impedance 16 mOhm
Lead Spacing 1.248" (31.70mm)
Dimension 3.028" Dia (76.90mm)
Height - Seated (Maximum) 7.547" (191.70mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 763412-B43703A5109M000
Popularity Medium
Supply and Demand Status Limited
Family Name B43703
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian B43703A5109M000 CAD Model

Description

The EPCOS (TDK) B43703A5109M000 is a capacitor.

  • Capacitance: 10000μF
  • Tolerance: ±20%
  • Voltage Rating: 450V
  • Polarized: Yes
  • Package: Radial with screw terminals
  • Mounting: Chassis
  • Impedance: 16 mOhm
  • ESR: 9.9 mOhm @ 100Hz
  • Lifetime @ Temperature: 12000 hours @ 85°C
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2028
