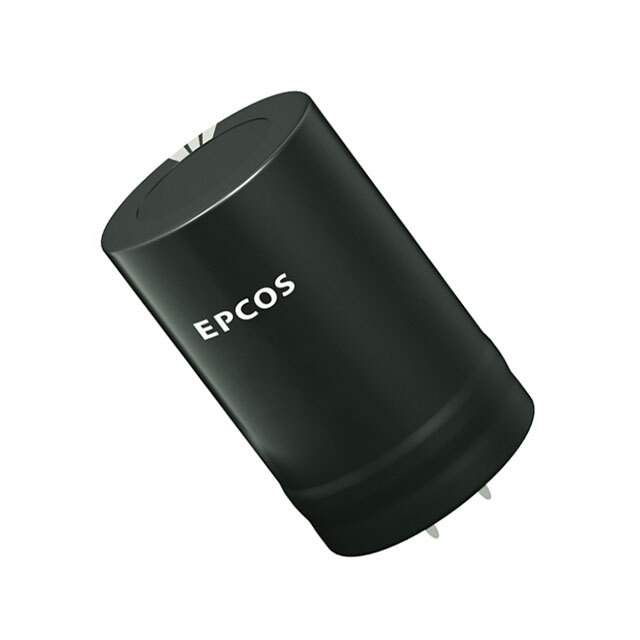

B43630A2338M000 Real Image
Same model may have multiple batches, images only for reference.

B43630A2338M000

Part No B43630A2338M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 3300UF 20% 200V SNAP / 3300 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 50mOhm @ 100Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr EPCOS - TDK Electronics
Series B43630
Package Bulk
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) 50mOhm @ 100Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 5.6 A @ 100 Hz
Impedance 80 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.244" (57.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names B43630A2338M
Standard Package 60
Win Source Part Number 1119924-B43630A2338M000
Ultra Librarian 3D Model Ultra Librarian B43630A2338M000 CAD Model

Description

The B43630 series from EPCOS is a range of aluminum electrolytic capacitors designed for general-purpose applications.

  • Capacitance: 3300 µF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 50mOhm @ 100Hz
  • Impedance: 80 mOhms
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: polarized
  • Package: radial, can-snap-in
  • Mounting Type: through-hole
  • Temperature Range: -40°C to 85°C
  • Dimension: 1.378" Dia (35.00mm)
