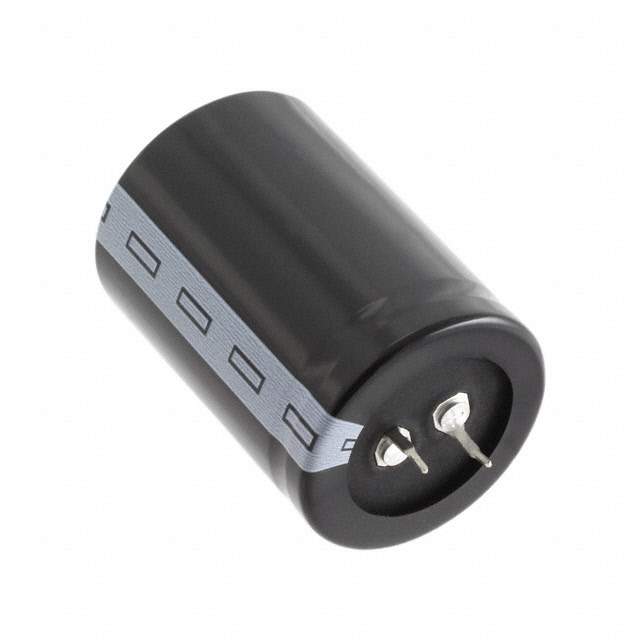

B43504F2228M000 Real Image
Same model may have multiple batches, images only for reference.

B43504F2228M000

Part No B43504F2228M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 200V SNAP / 2200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 65mOhm @ 100Hz 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr EPCOS - TDK Electronics
Series B43504
Package Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) 65mOhm @ 100Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 4.43 A @ 100 Hz
Impedance 80 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names B43504F2228M-ND,495-6265,B43504F2228M
Standard Package 60
Win Source Part Number 1049996-B43504F2228M000
Ultra Librarian 3D Model Ultra Librarian B43504F2228M000 CAD Model

Description

The B43504F2228M000 is a polarized aluminum electrolytic capacitor from the B43504 series by EPCOS - TDK Electronics.

  • Purpose: general-purpose
  • Capacitance: 2200 µF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • Lead Spacing: 0.394 inches (10.00mm)
  • Package: radial, can-snap-in
  • Mounting Type: through-hole
  • Operating Temperature Range: -40°C to 105°C
  • Impedance: 80 mOhms
  • ESR: 65mOhm @ 100Hz
  • Ripple Current: 4.43 A @ 100 Hz
  • Lifetime: 3000 Hrs @ 105°C
  • Diameter: 1.378 inches (35.00mm)
  • Height When Seated: 2.047 inches (52.00mm)
  • Alternative Parts: 381LR222M200A052, 383LX222M250N062, LGU2D222MELC, 380LX222M200A052, LGU2C222MELC, and LLS2D222MELC
