Same model may have multiple batches, images only for reference.

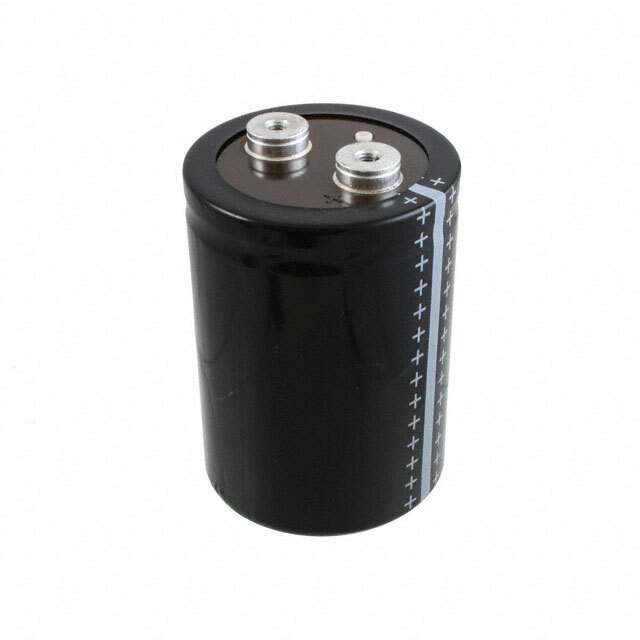

B43456A9478M000 Real Image
Same model may have multiple batches, images only for reference.

B43456A9478M000

Part No B43456A9478M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 400V SCREW / 4700 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 16mOhm @ 100Hz 12000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr EPCOS - TDK Electronics
Series B43456
Package Bulk
Product Status Not For New Designs
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) 16mOhm @ 100Hz
Lifetime @ Temp. 12000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 14 A @ 100 Hz
Impedance 17 mOhms
Lead Spacing 1.248" (31.70mm)
Dimension 3.028" Dia (76.90mm)
Height - Seated (Max) 4.161" (105.70mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0085
Other Names B43456A9478M,495-4237
Standard Package 16
Win Source Part Number 1047721-B43456A9478M000
Ultra Librarian 3D Model Ultra Librarian B43456A9478M000 CAD Model

Description

The B43456A9478M000 is an aluminum electrolytic capacitor from the B43456 series by EPCOS - TDK Electronics.

  • Capacitance: 4700 µF
  • Voltage Rating: 400V
  • Tolerance: ±20%
  • Impedance: 17 mOhms
  • Lifespan: 12000 hours @ 85°C
  • Polarized: polarized
  • Package: radial, can-screw terminal
  • Mounting: chassis mountable
  • Diameter: 3.028 inches
  • Height: 4.161 inches
