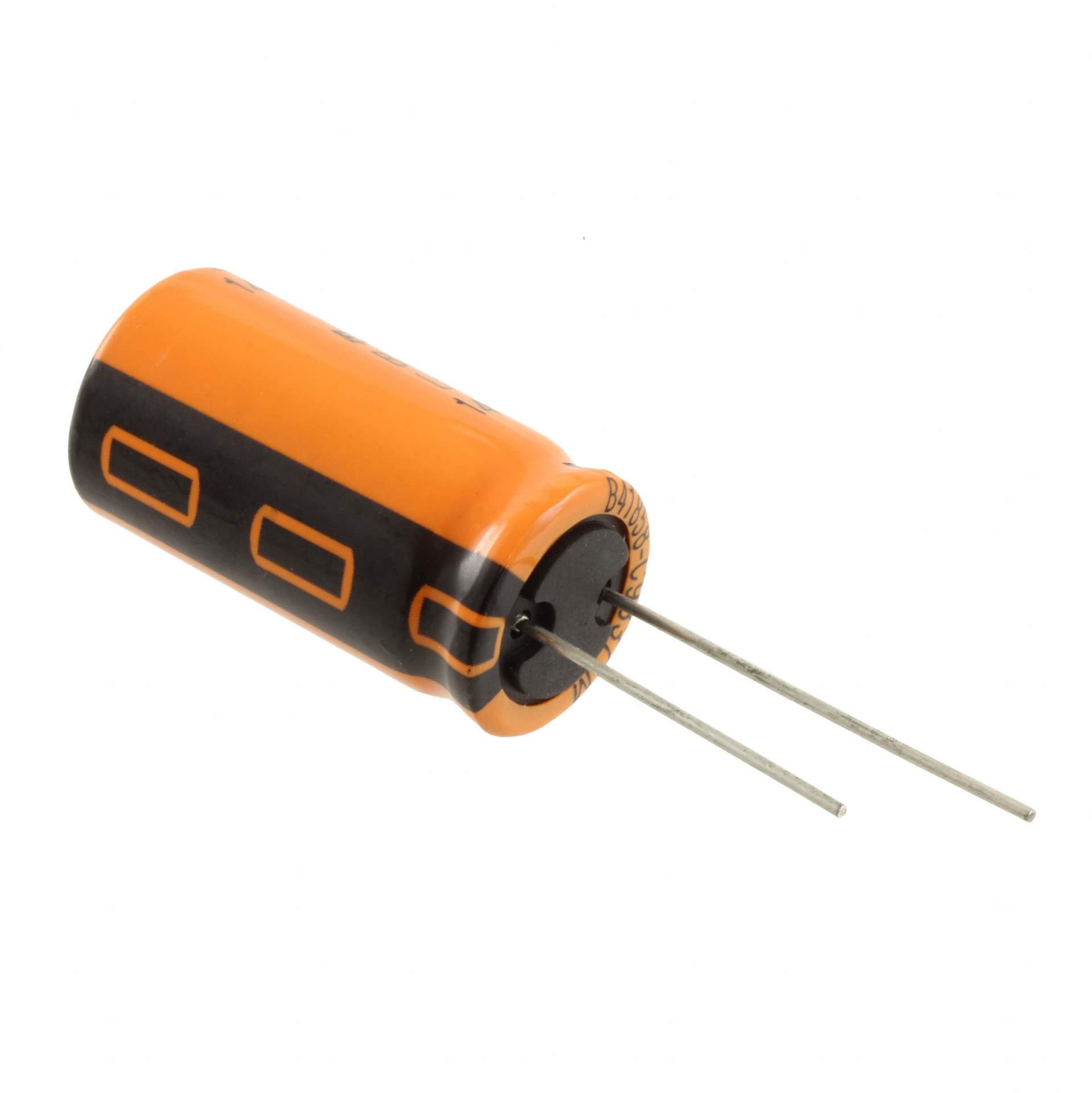

B41858C3688M Real Image
Same model may have multiple batches, images only for reference.

B41858C3688M

Part No B41858C3688M
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 6800UF 20% 10V RADIAL
Datasheet
B41858C3688M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B41858
Packaging Bulk
Capacitance 6800μF
Tolerance ±20%
Voltage Rating 10V
ESR (Equivalent Series Resistance) 24 mOhm @ 10kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current - High Frequency 3.122A @ 100kHz
Impedance 22 mOhm
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.319" (33.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 770950-B41858C3688M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B41858C3688M CAD Model

Description

The EPCOS (TDK) 770950-B41858C3688M is a medium-popularity electronic component in the open market.

  • Applications: Automotive
  • Package Type: Bulk
  • Mounting Style: Through-hole
  • Capacitance: 6800μF
  • Tolerance: ±20%
  • Impedance: 22 mOhm
  • Voltage Rating: 10V
  • ESR: 24 mOhm @ 10kHz
  • Package: Radial, Can
  • Diameter: 0.630" (16.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Ripple Current: 3.122A @ 100kHz
  • Height: 1.319" (33.50mm)
