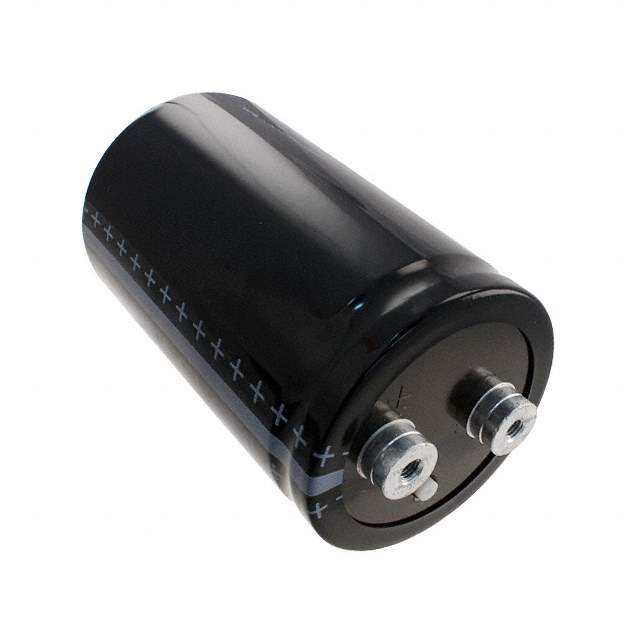

B41560A7100M003 Real Image
Same model may have multiple batches, images only for reference.

B41560A7100M003

Part No B41560A7100M003
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 100000UF 20% 40V SCREW
Datasheet
B41560A7100M003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B41560
Packaging Bulk
Capacitance 100000μF
Tolerance ±20%
Voltage Rating 40V
ESR (Equivalent Series Resistance) 8.2 mOhm @ 100Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 18A @ 100Hz
Impedance 7 mOhm
Lead Spacing 1.122" (28.50mm)
Dimension 2.532" Dia (64.30mm)
Height - Seated (Maximum) 4.201" (106.70mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 766829-B41560A7100M003
Popularity Medium
Supply and Demand Status Limited
Family Name B41560
Introduction Date June 25, 2001
ECCN EAR99
Country of Origin Brazil
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B41560A7100M003 CAD Model

Description

{"FormattedDescription":"

The B41560A7100M003 aluminum electrolytic capacitor from EPCOS (TDK) has a capacitance of 100000μF and a voltage rating of 40V.

  • Capacitance: 100000μF
  • Voltage Rating: 40V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Impedance: 7mOhm
  • ESR: 8.2mOhm @ 100Hz
  • Ripple Current at Low Frequency: 18A @ 100Hz
  • Mounting: Chassis
  • Package: Radial, Can-Screw Terminals
  • Height Seated: 4.201 inches (106.7mm)
  • Lead Spacing: 1.122 inches (28.5mm)
  • Operating Temperature Range: -40°C to 105°C
  • Lifetime @ Temperature: 3000 hours
  • Series: B41560
  • Packaging: Bulk
"}
