Same model may have multiple batches, images only for reference.

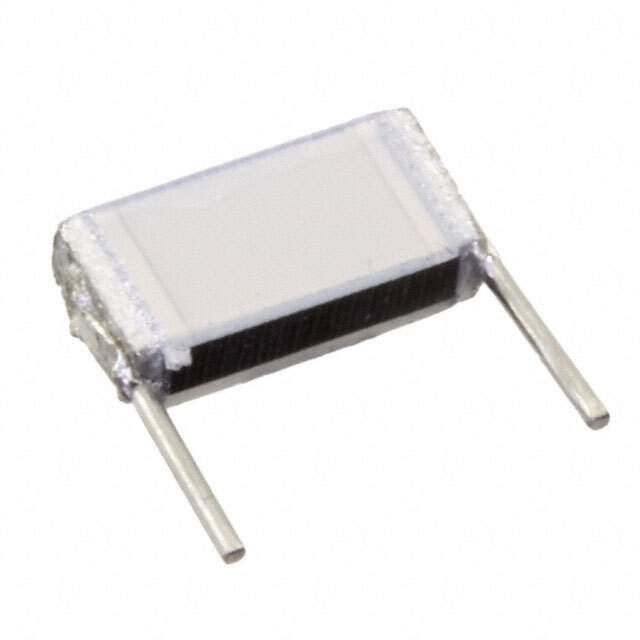

B32560J6332K000 Real Image
Same model may have multiple batches, images only for reference.

B32560J6332K000

Part No B32560J6332K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 3300PF 10% 400VDC 2DIP / Cap Film 0.0033uF 400V PET 10% (9 X 2.5 X 5.5mm) Radial Stacked 7.5mm 125°C Bulk
Datasheet
B32560J6332K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series SilverCap B32560
Packaging Bulk
Capacitance 3300pF
Tolerance ±10%
Voltage Rating - AC 200V
Voltage Rating - DC 400V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package 2-DIP
Dimension 0.354" L x 0.098" W (9.00mm x 2.50mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General
Win Source Part Number 769484-B32560J6332K000
Popularity Medium
Supply and Demand Status Limited
Family Name B32560
Introduction Date June 25, 2001
ECCN EAR99
Country of Origin Brazil
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B32560J6332K000 CAD Model

Description

The EPCOS (TDK) B32560J6332K000 is a bulk-packaged, polyester and polyethylene terephthalate (PET) metallized-stacked capacitor with a capacitance of 3300pF and a tolerance of ±10%.

  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Package / Case: 2-DIP
  • Voltage Rating AC: 200V
  • Voltage Rating DC: 400V
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET) Metallized - Stacked
  • ESR: -
  • Lead Spacing: 0.295" (7.50mm)
  • Dimensions: 0.354" L x 0.098" W (9.00mm x 2.50mm)
  • Operating Temperature Range: -55°C to 125°C
  • Halogen Free: Yes
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2025
  • Manufactured in: Brazil
  • ECCN: EAR99
