Same model may have multiple batches, images only for reference.

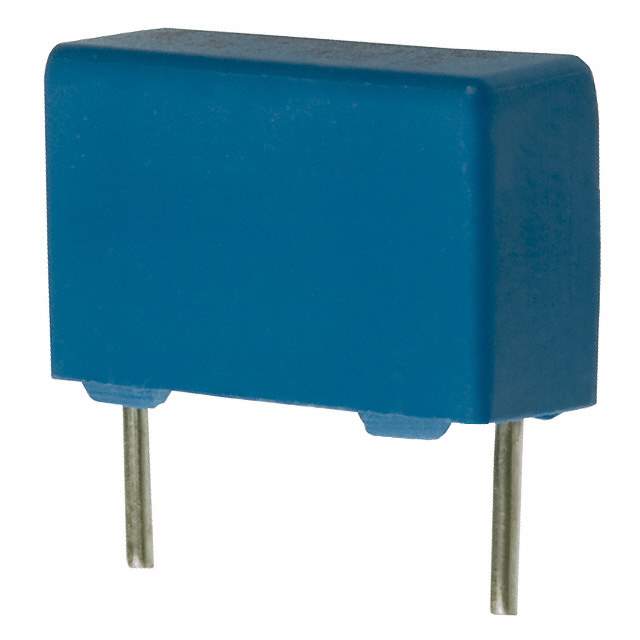

B32522N6224J189 Real Image
Same model may have multiple batches, images only for reference.

B32522N6224J189

Part No B32522N6224J189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 450VDC RADIAL / 0.22 µF Film Capacitor 200V 450V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3252* - MKT General Purpose
Package Tape & Reel (TR),Cut Tape (CT)
Capacitance 0.22 µF
Tolerance ±5%
Voltage Rating - AC 200V
Voltage Rating - DC 450V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32522N6224J189-ND,495-B32522N6224J189TR,495-B32522N6224J189CT
Standard Package 1,100
Win Source Part Number 1164196-B32522N6224J189
Ultra Librarian 3D Model Ultra Librarian B32522N6224J189 CAD Model

Description

This B3252* - MKT General Purpose series capacitor is an ideal choice for EMI and RFI suppression in automotive applications.

  • Capacitance: 0.22 µF
  • Voltage Rating: 200V AC and 450V DC
  • Tolerance: ±5%
  • AEC-Q200: rated
  • Dielectric Material: polyester, polyethylene terephthalate (PET) and metallized
  • Package: radial
  • Height: 0.433" (11.00mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Operating Temperature Range: -55°C ~ 125°C
  • Packaging: tape & reel (TR) and cut tape (CT)
  • Standard Package: 1,100 capacitors
