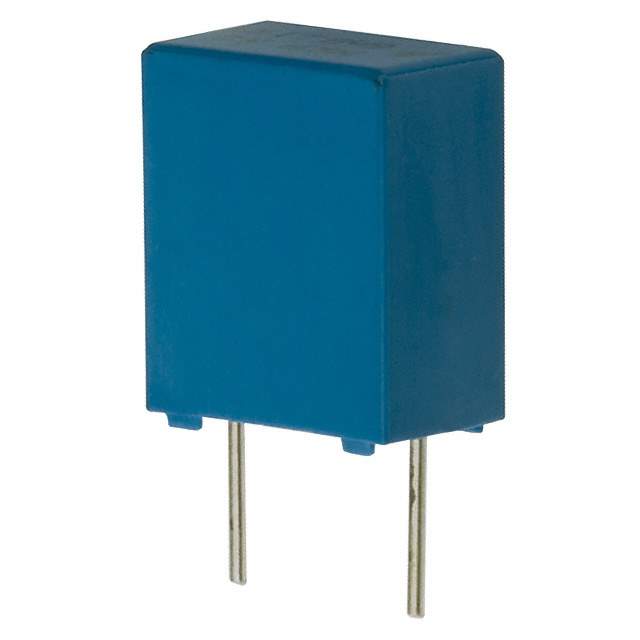

B32520C3224K289 Real Image
Same model may have multiple batches, images only for reference.

B32520C3224K289

Part No B32520C3224K289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 250VDC RAD / 0.22 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3252* - MKT General Purpose
Package Tape & Box (TB)
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.406" L x 0.236" W (10.30mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Standard Package 5,200
Win Source Part Number 1018653-B32520C3224K289
Ultra Librarian 3D Model Ultra Librarian B32520C3224K289 CAD Model

Description

The B3252* - MKT General Purpose series capacitor is a high-quality film capacitor manufactured by EPCOS (TDK).

  • Capacitance: 0.22 μF
  • Tolerance: ±10%
  • Voltage Rating: 160V AC / 250V DC
  • Application: Automotive, EMI/RFI Suppression
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized-Stacked
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Height: 0.472" (12.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Operating Temperature: -55°C to 125°C
  • Rating: AEC-Q200
  • Standard Package: 5,200
