Same model may have multiple batches, images only for reference.

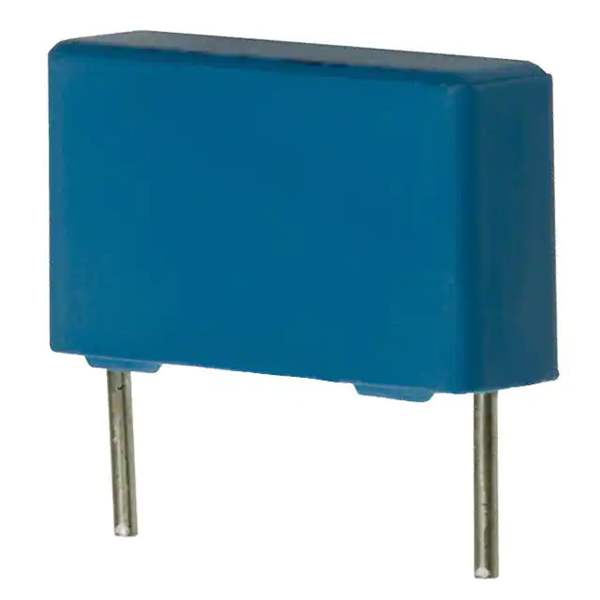

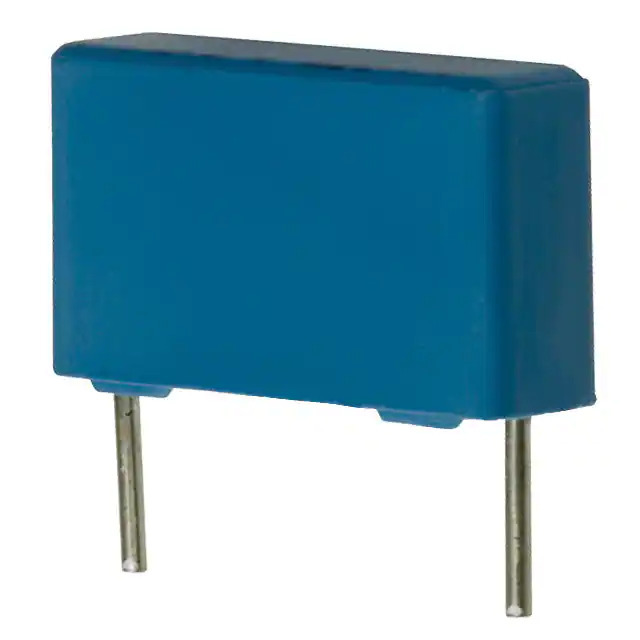

B32022A3103M289 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32022A3103M289

Part No B32022A3103M289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 10000PF 20% 1.5KVDC RAD / 10000 pF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3202* - Y2 Standard
Product Status Active
Capacitance 10000 pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1360561-B32022A3103M289
Ultra Librarian 3D Model Ultra Librarian B32022A3103M289 CAD Model

Description

The B32022A3103M289 is a film capacitor from EPCOS - TDK Electronics.

  • Series: B3202* - Y2 Standard
  • Package / Case: Radial
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C ~ 110°C
  • Capacitance: 10000 pF
  • Tolerance: ±20%
  • Voltage Rating: 300V AC
  • Voltage Rating: 1500V DC
  • Application: EMI and RFI suppression
