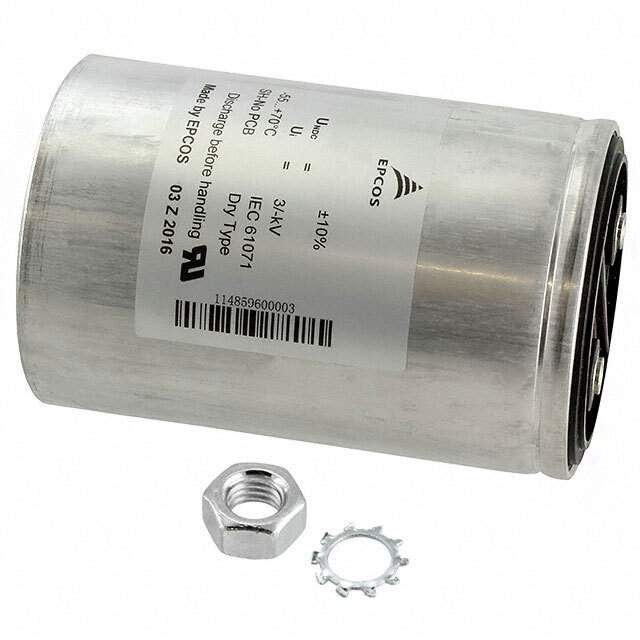

B25620B1237K101 Real Image
Same model may have multiple batches, images only for reference.

B25620B1237K101

Part No B25620B1237K101
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 230UF 10% 1.1KVDC SCREW
Datasheet
B25620B1237K101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 230μF
Tolerance ±10%
Voltage Rating - DC 1100V (1.1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 70°C
Mounting Chassis Mount
Dimension 2.953" Dia (75.00mm)
Height - Seated (Max) 4.803" (122.00mm)
Lead Spacing 1.260" (32.00mm)
Applications DC Link, DC Filtering
Win Source Part Number 1021355-B25620B1237K101
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B25620B1237K101 CAD Model

Description

The EPCOS (TDK) B25620B1237K101 is a capacitor component with a capacitance of 230μF and a tolerance of ±10%.

  • Manufacturer: EPCOS (TDK)
  • Capacitance: 230μF
  • Tolerance: ±10%
  • Voltage Rating: DC 1100V (1.1kV)
  • Packaging: Bulk
  • Mounting: Chassis Mount
  • Dielectric Material: Polypropylene (PP), Metallized
  • Lead Spacing: 1.260" (32.00mm)
  • Operating Temperature Range: -55°C to 70°C
  • Dimension: 2.953" Dia (75.00mm)
