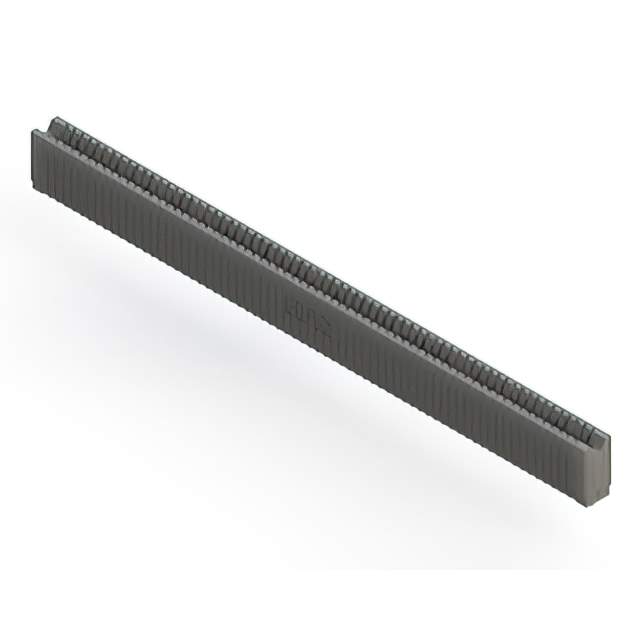

745-068-520-106 Real Image
Same model may have multiple batches, images only for reference.

745-068-520-106

Part No 745-068-520-106
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 745 SERIES ULTRA-MATE CARD EDGE / 68 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Datasheet
745-068-520-106 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 745
Package Bulk
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 68
Number of Positions 68
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 745-068
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-745-068-520-106
Standard Package 25
Win Source Part Number 1129648-745-068-520-106
Ultra Librarian 3D Model Ultra Librarian 745-068-520-106 CAD Model

Description

The 1129648-745-068-520-106 is a female card edge connector from EDAC Inc.

  • Positions: 68
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Cantilever
  • Termination: Press-fit
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Operating Temperature (Max): -40°C ~ 105°C
  • Category: Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
  • Series: 745 series
  • Row: Single
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Mounting: Through-hole mounted
  • Temperature Range: -40°C ~ 105°C
  • REACH: REACH unaffected
  • ECCN: EAR99
