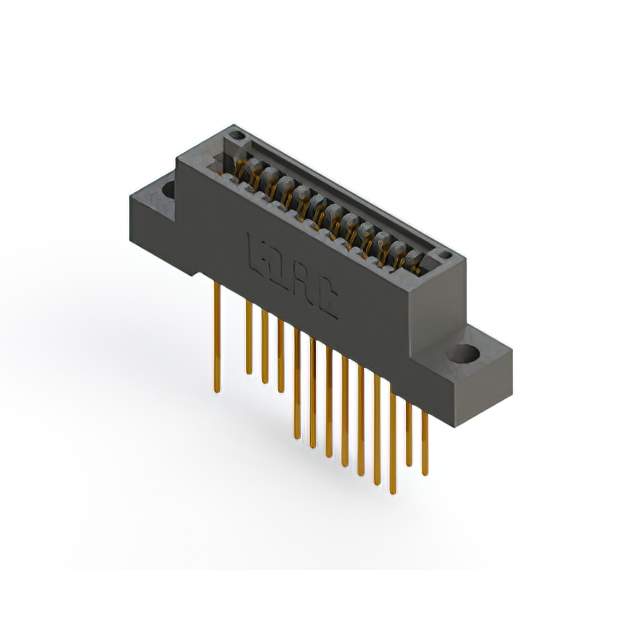

Part No 395-024-542-204
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 24POS 0.100 / 24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Datasheet
395-024-542-204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 12
Number of Positions 24
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 395-024
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 25
Win Source Part Number 1041255-395-024-542-204
Ultra Librarian 3D Model Ultra Librarian 395-024-542-204 CAD Model

Description

The EDAC Inc. 395-024-542-204 is a female card edge connector that has 24 positions and a pitch of 0.100" (2.54mm).

  • Contact Type: Cantilever
  • Number of Rows: Two
  • Termination: Wire Wrap
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
  • Insulation Material: Polyester Thermoplastic
  • Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
  • Temperature Range: -40°C ~ 105°C
  • Mounting Type: Through Hole
  • Standard Package: 25
  • Card Type: Non-specified Dual Edge
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
