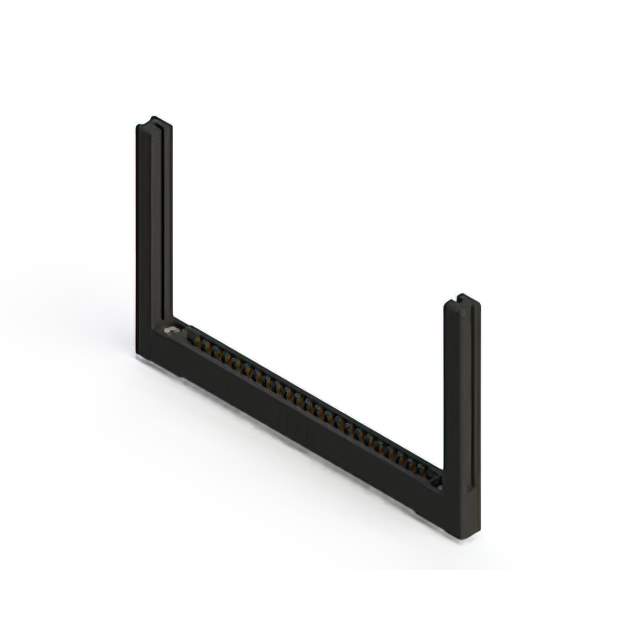

Part No 357-023-557-158
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 46POS 0.156 / 46 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Datasheet
357-023-557-158 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 357
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 23
Number of Positions 46
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Features Card Guides
Mounting Type Through Hole, Right Angle
Termination Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Black
Flange Feature Flush Mount, Top Opening, Threaded Insert, 4-40
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 357-023
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-357-023-557-158
Standard Package 25
Win Source Part Number 1025391-357-023-557-158
Ultra Librarian 3D Model Ultra Librarian 357-023-557-158 CAD Model

Description

The 357-023-557-158 is a card edge connector designed for use in edgeboard connectors supplied by EDAC Inc.

  • Positions: 46
  • Pitch: 0.156" (3.96mm)
  • Features: Card Guides
  • Contact Type: Semi Bellows
  • Rows: 2
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -40°C to 105°C
  • HTSUS: 8536.69.4040
