Same model may have multiple batches, images only for reference.

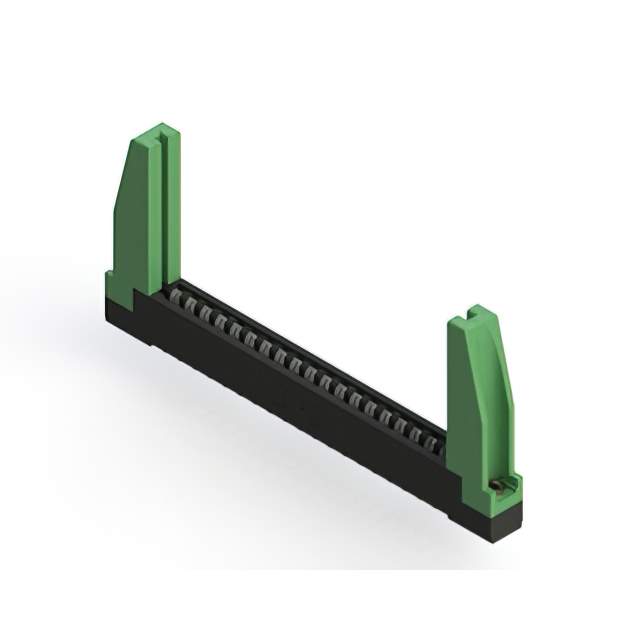

357-020-454-178 Real Image
Same model may have multiple batches, images only for reference.

357-020-454-178

Part No 357-020-454-178
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 357 SERIES (.156" (3.96MM) CONTA / 40 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
Datasheet
357-020-454-178 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 357
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 20
Number of Positions 40
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Features Card Guides
Mounting SMD (SMT)
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Tin
Contact Type Semi Bellows
Color Black
Flange Feature Flush Mount, Top Opening, Threaded Insert, 4-40
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 357-020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-357-020-454-178
Standard Package 25
Win Source Part Number 1033713-357-020-454-178
Ultra Librarian 3D Model Ultra Librarian 357-020-454-178 CAD Model

Description

The 357-020-454-178 is a dual-edge card edge connector designed for connectors, interconnects from EDAC Inc.

  • Manufacturer: EDAC Inc.
  • Category: Connectors, Interconnects
  • Positions: 40
  • Pitch: 0.156" (3.96mm)
  • Gender: Female
  • Contact Type: Semi-Bellows
  • Termination: Solder Eyelet(s)
  • Contact Finish: Tin
  • Package: Bulk
  • Standard Package: 25
  • Card Type: Non-Specified
  • Positions Per Bay Per Row: 20
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
  • Operating Temperature: -40℃ ~ 105℃
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
