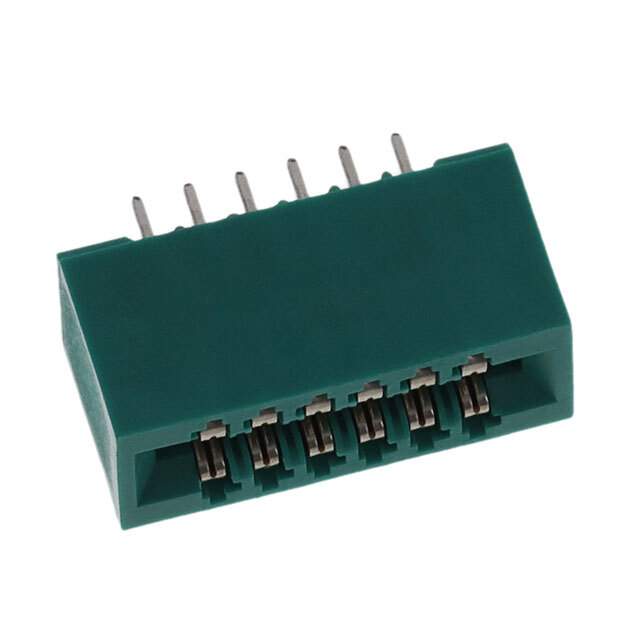

341-012-520-201 Real Image
Same model may have multiple batches, images only for reference.

341-012-520-201

Part No 341-012-520-201
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CARD EDGE CONNECTOR, PLUG, 12POS; Connector Type: Card Edge; Series: Standard Edge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Board Thickness 1.57 mm
Card Thickness 1.5748 mm
Color Green
Contact Material Nickel, Tin
Contact Plating Gold
Contact Resistance 10 mΩ
Gender Female
Housing Material Polyester
Insulation Material Polyester
Lead Free Yes
Max Current Rating 3 A
Maximum Operating Temperature 125 °C
Min Operating Temperature -65 °C
Mount Through Hole
Number of Contacts 12
Number of Positions 12
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
RoHS Compliant
Termination Solder
Win Source Part Number 1035685-341-012-520-201
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer EDAC Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 341-012-520-201 CAD Model

Description

The EDAC Inc. 1035685-341-012-520-201 is a card edge connector with 12 contacts and a pitch of 2.54 mm.

  • Number of Contacts: 12
  • Pitch: 2.54 mm
  • Board Thickness: 1.57 mm
  • Contact Resistance: 10 mΩ
  • RoHS Compliant: Yes
  • Mounting Type: Through-Hole
  • Maximum Operating Temperature: 125°C
  • Lead-Free: Yes
  • Market Status: Limited Supply and Demand
  • Housing Material: Polyester
  • Manufacturer: EDAC Inc.
