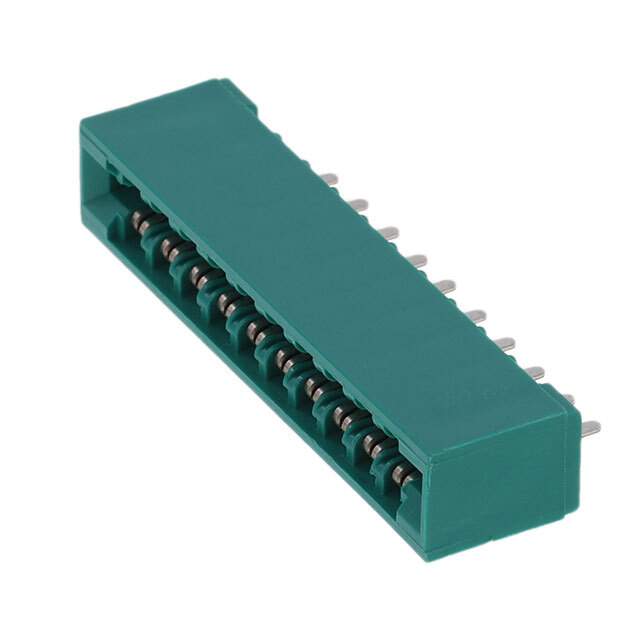

307-010-525-101 Real Image
Same model may have multiple batches, images only for reference.

307-010-525-101

Part No 307-010-525-101
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE SGL FMALE 10POS 0.156 / 10 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
Datasheet
307-010-525-101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 307
Package Bulk
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 10
Number of Positions 10
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Green
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 307-010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 307-010-525-101-ND,151-1341
Standard Package 25
Win Source Part Number 1034205-307-010-525-101
Ultra Librarian 3D Model Ultra Librarian 307-010-525-101 CAD Model

Description

The 1034205-307-010-525-101 is a green-colored, 10-position card edge connector that has a pitch of 0.156 inches.

  • Color: Green
  • Positions: 10
  • Pitch: 0.156 inches
  • Contact Type: Semi-Bellows
  • Rows: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0 µin
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Gender: Female
  • Standard Package: 25
  • Card Type: Non-Specified Single Edge
  • Card Thickness: 0.054 inches to 0.070 inches
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 105°C
  • Alternative Parts: 09-50-8120, 09-50-1111, 3-640861-9, 3-640866-9, and 3-640867-9
