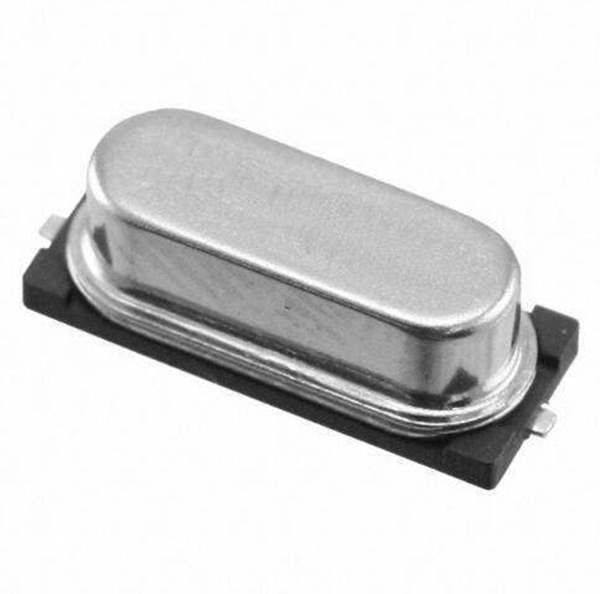

ECS-98.3-20-5PXDU-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-98.3-20-5PXDU-TR

Part No ECS-98.3-20-5PXDU-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 9.8304MHZ 20PF SMD
Datasheet
ECS-98.3-20-5PXDU-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 9.8304 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Win Source Part Number WS1304810-ECS-98.3-20-5PXDU-TR
Ultra Librarian 3D Model Ultra Librarian ECS-98.3-20-5PXDU-TR CAD Model

Description

The CSM-7XDU is the widest temperature range version of our standard CSM-7X crystal.
