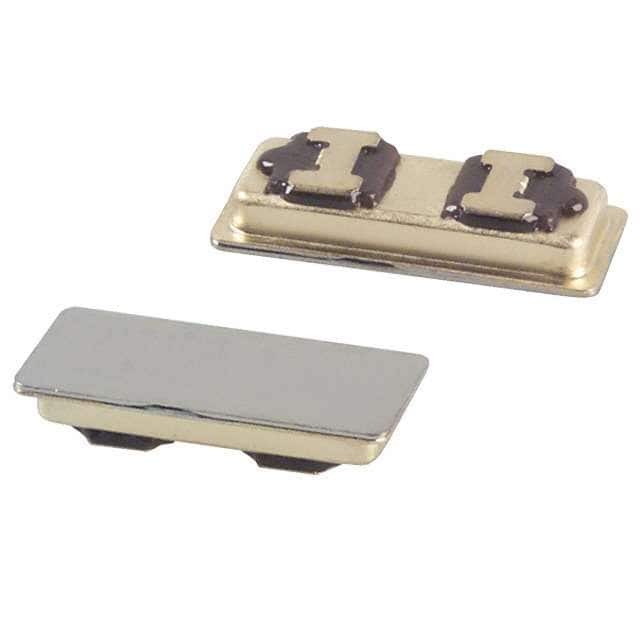

ECS-80-20-19A-TR
Same model may have multiple batches, images only for reference.

ECS-80-20-19A-TR

Part No ECS-80-20-19A-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 20PF SMD / 8 MHz ±30ppm Crystal 20pF 100 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-19A
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.433" L x 0.197" W (11.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 917812-ECS-80-20-19A-TR
Ultra Librarian 3D Model Ultra Librarian ECS-80-20-19A-TR CAD Model

Description

The ECX-19A series crystal is a reliable component for clock and timing applications.

  • Frequency: 8MHz
  • Frequency Tolerance: ±30ppm
  • Size: 0.433" length and 0.197" width
  • Mounting: surface mount
  • ESR: 100 Ohms
  • Temperature Range: -10°C to 70°C
  • Package: tape and reel format
