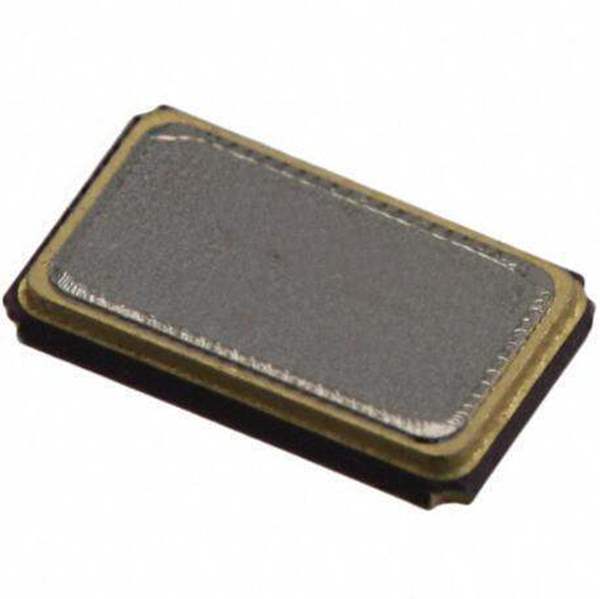

ECS-480-20-30B-DU ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-480-20-30B-DU

Part No ECS-480-20-30B-DU
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 48.0000MHZ 20PF SMD
Datasheet
ECS-480-20-30B-DU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 48 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Win Source Part Number WS1211062-ECS-480-20-30B-DU
Ultra Librarian 3D Model Ultra Librarian ECS-480-20-30B-DU CAD Model

Description

48 MHz ±30ppm Crystal 20pF 30 Ohms 4-SMD, No Lead
