Same model may have multiple batches, images only for reference.

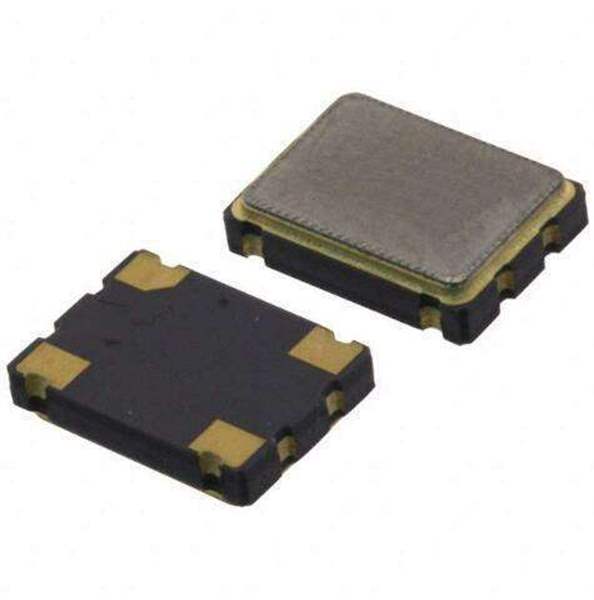

ECS-3953M-200-BN-TRECS Inc.
Same model may have multiple batches, images only for reference.

ECS-3953M-200-BN-TR

Part No ECS-3953M-200-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ HCMOS SMD
Datasheet
ECS-3953M-200-BN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Oscillators
Part Status Active
Frequency 20 MHz
Function Enable/Disable
Frequency Stability ±50ppm
Operating Temperature -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Win Source Part Number WS1304795-ECS-3953M-200-BN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3953M-200-BN-TR CAD Model

Description

The ECS-3951M-BN (5V) and ECS-3953M-BN (3.3V) Industrial Grade (-40 ~ 85°C) miniature SMD oscillators. Ideal for today’s high temperature range applications.
