Same model may have multiple batches, images only for reference.

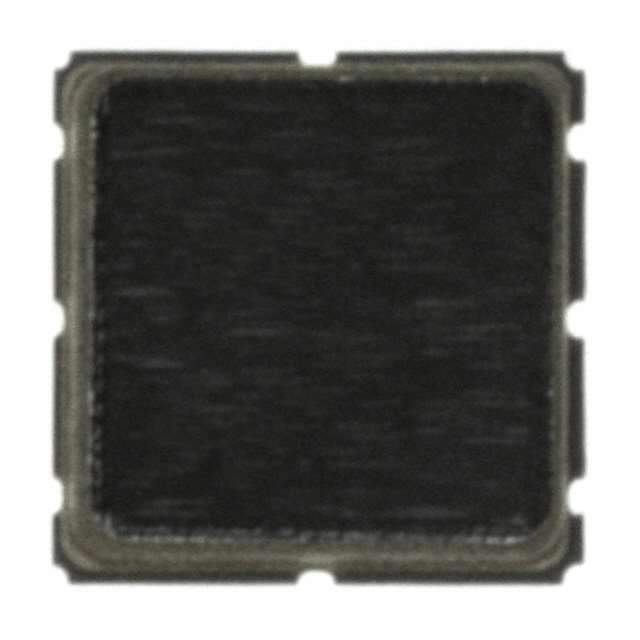

ECS-38SMF45A15 Real Image
Same model may have multiple batches, images only for reference.

ECS-38SMF45A15

Part No ECS-38SMF45A15
Manufacturer ECS Inc.
Catalog Unclassified
Description MONO XTAL 45MHZ 2P 2DB SMD
Datasheet
ECS-38SMF45A15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 20 Weeks
Features 45 MHz Center 560 Ohms Monolithic Crystal Filter Surface Mount 2dB 15 kHz
Manufacturer ECS Inc.
Series ECS-38SMF
Package Reel - TR
Operating Temperature Range -30°C ~ 80°C
Mounting Surface Mount
Package 8-SMD, No Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0020
Other Part Number X720TR, X720CT, X720DKR, ECS-38SMF45A15-TR, ECS38SMF45A15
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917804-ECS-38SMF45A15
Ultra Librarian 3D Model Ultra Librarian ECS-38SMF45A15 CAD Model

Description

The ECS-38SMF45A15 is a monolithic crystal filter that is surface mounted and has a center frequency of 45 MHz.

  • Center Frequency: 45 MHz
  • Impedance: 560 Ohms
  • Insertion Loss: 2dB @ 15 kHz
  • Series: ECS-38SMF
  • Temperature Range: -30°C to 80°C
  • Package: reel package with 8-SMD, no lead
  • Supply and Demand Status: balanced
  • Category: filters
  • ECCN: EAR99
