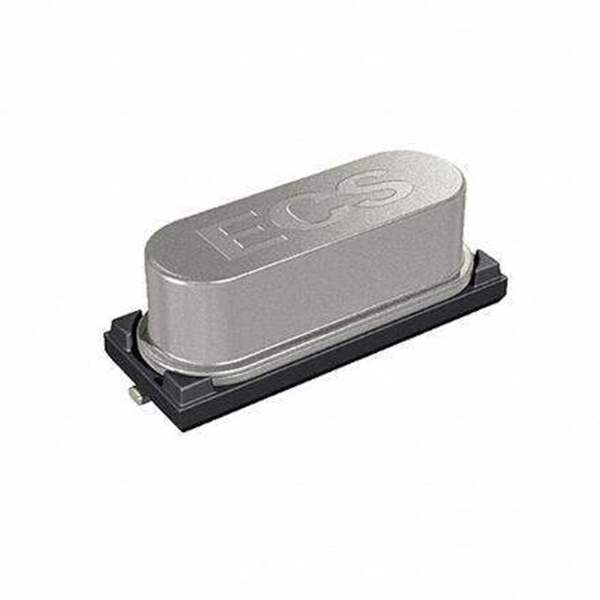

ECS-36-20-5P-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-36-20-5P-TR

Part No ECS-36-20-5P-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 3.6864MHZ 20PF SMD
Datasheet
ECS-36-20-5P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Not For New Designs
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Operating Temperature -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Win Source Part Number WS1211074-ECS-36-20-5P-TR
Ultra Librarian 3D Model Ultra Librarian ECS-36-20-5P-TR CAD Model

Description

3.6864 MHz ±30ppm Crystal 20pF 150 Ohms HC-49/US
